Installing Seal For Convertible-Top Tip

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Installation is performed in reverse order to removal.

  1. Tighten fastening screws to the specified tightening torque in the sequence shown. → Tightening torque: 9.7 Nm (7.5 ftlb.)+/- 1 Nm (+/-0.5 ftlb.)

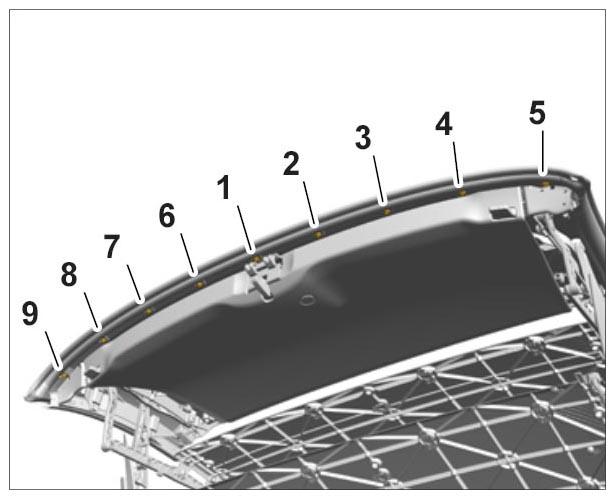

    Fig 1: Seal For Convertible-Top Screws Tightening Sequence
    G09994516Courtesy of PORSCHE CARS NORTH AMERICA, INC.
