Removing Convertible Top Covering

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

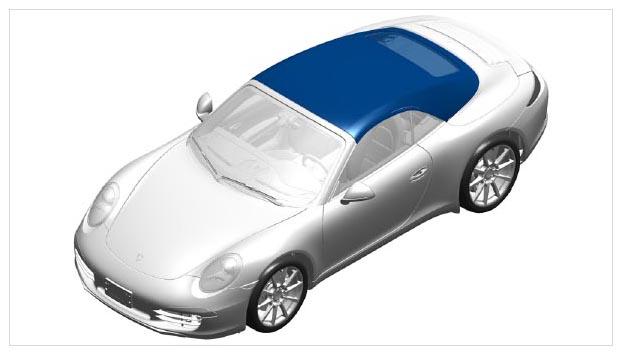

Fig 1: Identifying Convertible Top Covering

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Some of the repair illustrations show only one side of the vehicle.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

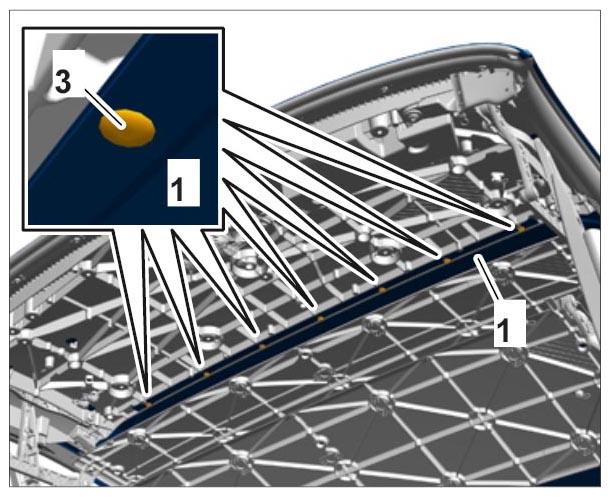

Drill out rivets -3- on the roof frame.

Fig 2: Identifying Rivets On Roof Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

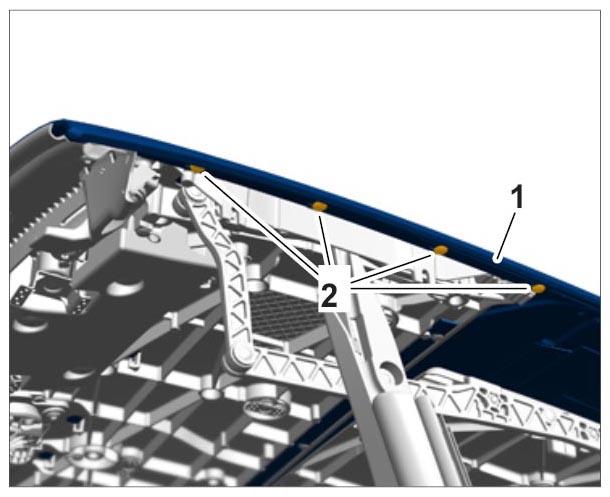

Drill out rivets -2- on the outside of the convertible top covering -1- .

Fig 3: Identifying Front Outer Rivets
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

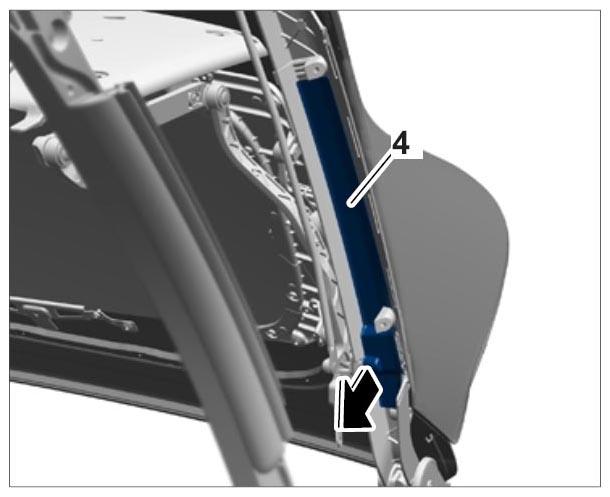

Remove cover -4- .

Fig 4: Removing Side Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

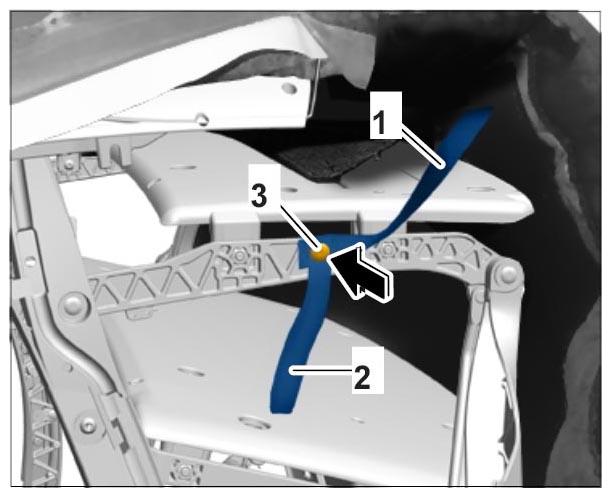

Loosen retaining strap -3- at the sides.

Fig 5: Loosening Retaining Strap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Remove expansion rivet -2- .
2. 4.2. Pull retaining strap -3- through to the outside.

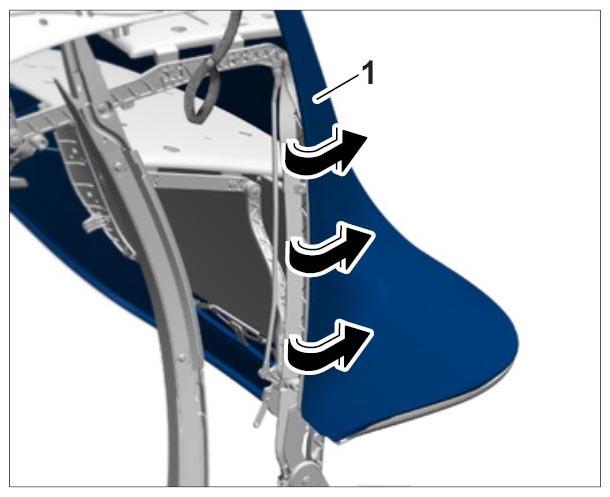

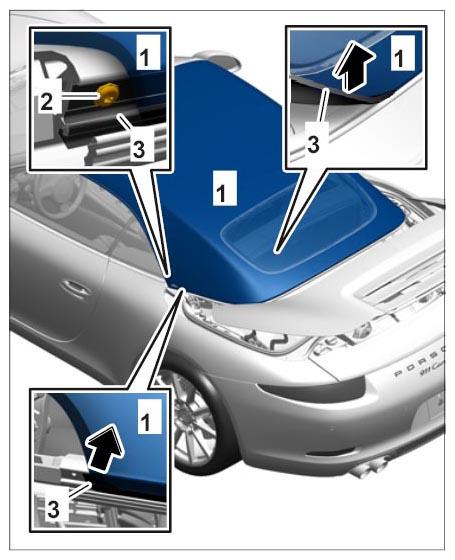

Unhook convertible top covering -1- at the sides.

Fig 6: Loosening Convertible Top Covering
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

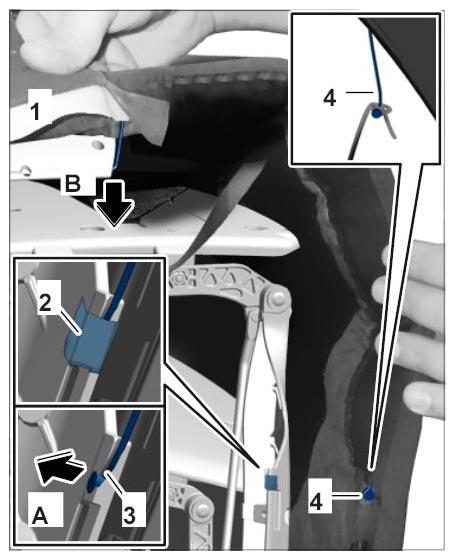

Release tension rope.

Fig 7: Releasing Tension Rope
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

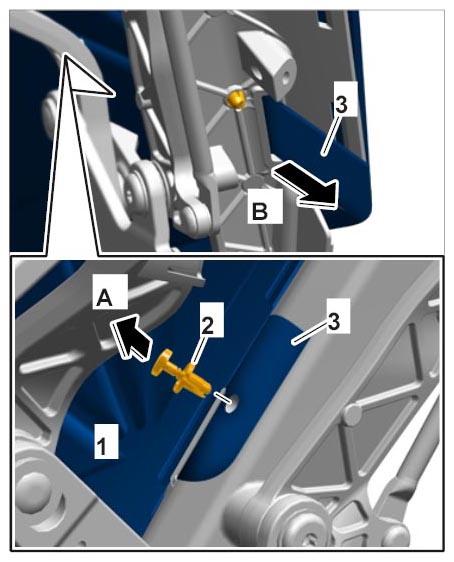

1. 6.1. Pull off adhesive tape -2- .
2. 6.2. Disengage tension rope -3- (-arrow A- ).
  Information
  - Only required when re-using the convertible top covering.
  The tension rope can be pulled in during installation using the cord.

  The cord remains in the removed convertible top covering.
3. 6.3. Secure the cord -4- to the tension rope and pull it into the duct on the convertible top.
4. 6.4. Pull tension rope out of the duct on the convertible top -arrow B- .
5. 6.5. Release the cord -4- from the tension rope -3- .
Loosen retaining strap.

Fig 8: Loosening Retaining Strap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 7.1. Drill out rivets -3- .
2. 7.2. Remove retaining strap -1- and suspended joint -2- .
Detach convertible top covering -1- at the rear.

Fig 9: Detaching Convertible Top Covering
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 8.1. Unscrew screw -2- .
2. 8.2. Pull piping -3- out of the tension bow.
Loosen retaining frame for rear window.

Fig 10: Identifying Retaining Frame For Rear Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

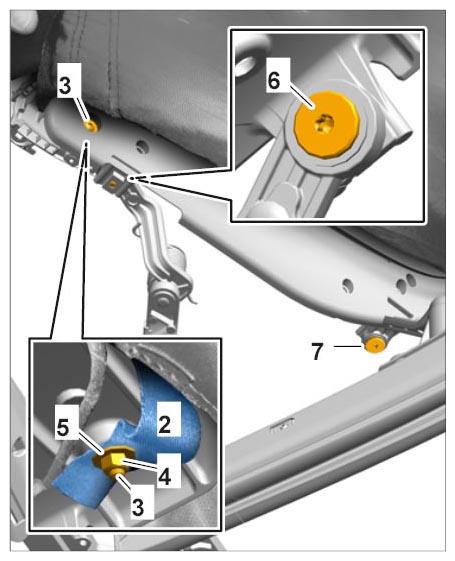

1. 9.1. Unscrew fastening screw -3- .
2. 9.2. Remove nut -4- , washer -5- and retaining strap -2- .
3. 9.3. Unscrew fastening screws -6 and 7- on retaining frame for rear window.
Detach convertible top covering completely and remove it.

Fig 11: Removing Convertible Top Covering
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

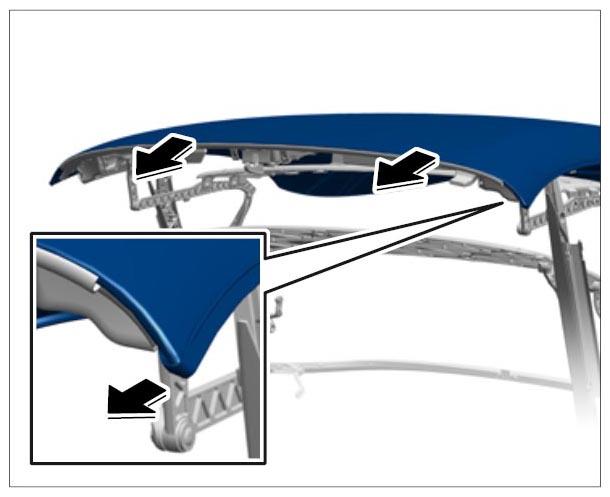

1. 10.1. Fold up convertible top covering at the rear and place it on the roof frame.
2. 10.2. Detach convertible top covering at the front edge. -arrows-
3. 10.3. Remove convertible top covering. -arrows-
