Installing Convertible Top Covering

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Secure convertible top covering at the front.

Fig 1: Securing Convertible Top Covering
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

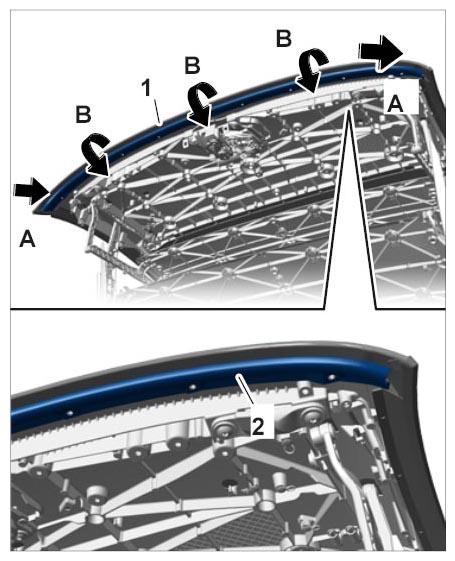

1. 1.1. Position convertible top covering -1- .

  Fig 2: Positioning Convertible Top Covering
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

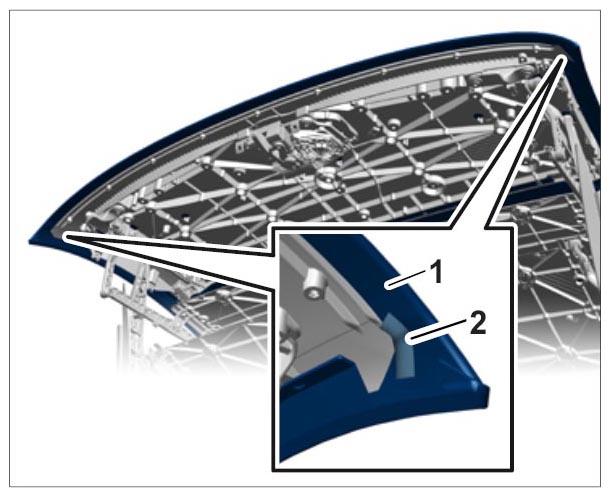

  1. 1.1.1. Fit reinforcement strip -2- around the roof frame -3- on the inside -arrow- .
2. 1.2. Fit the corners. -arrows A-

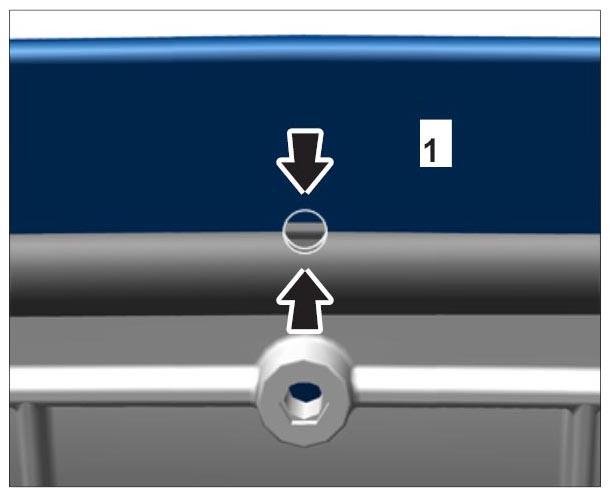

3. 1.3. Align convertible top covering -1- at the front with the markings -arrows- so that it is centered.

  Fig 3: Aligning Convertible Top Covering
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 1.4. Fold the convertible fop material around the edge of the roof frame without wrinkles. -arrows B-
5. 1.5. Secure the front edge with double-sided adhesive tape -2- .

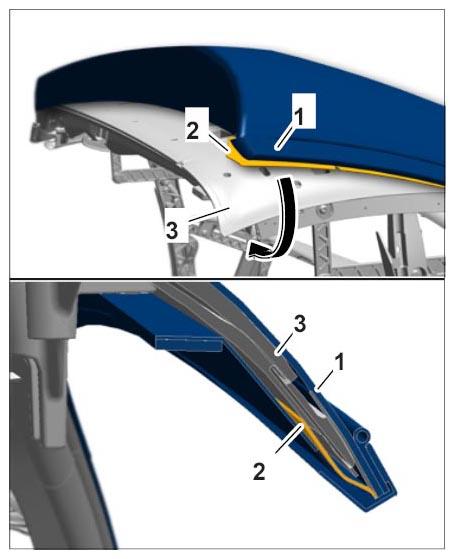

Before installing the convertible-top tip seal -1- , stick on felt strip -2- .

Fig 4: Identifying Stick On Felt Strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

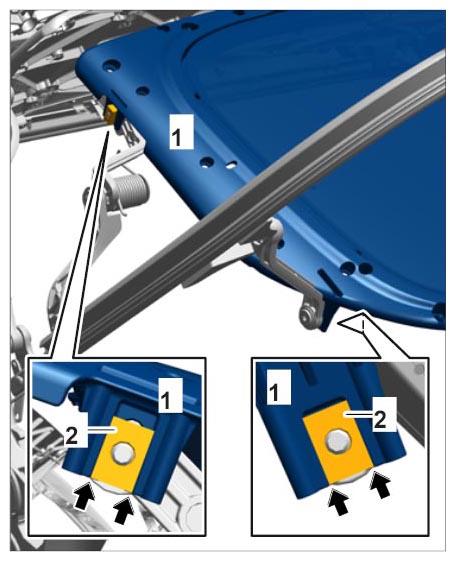

The nuts -2- on the retaining frame -1- must be positioned flush with the lower edge. -arrows-

Fig 5: Positioning Retaining Frame For Rear Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

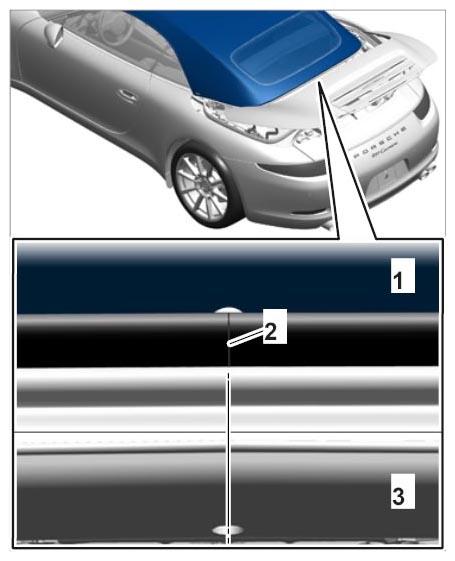

Align the convertible top covering -1- with the marking -2- so that it is centered with respect to the bore on the tension bow -3- . -arrows-

Fig 6: Positioning Convertible Top Covering
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Further installation is performed in reverse order to removal.

Tightening torque 9.7 Nm (7.5 ftlb.)

Tightening torque 9.7 Nm (7.5 ftlb.)
