Removing Seal For Cowl Panel Frame: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

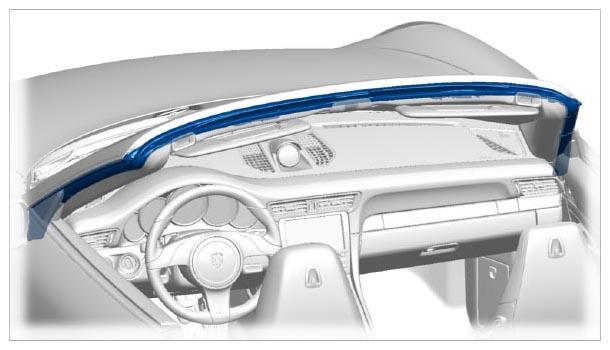

Fig 1: Identifying Seal For Cowl Panel Frame

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

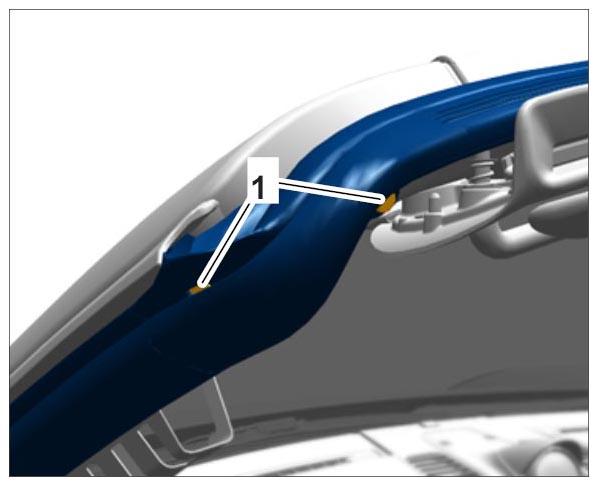

Unscrew fastening screws -1- between the sealing lips.

Fig 2: Identifying Screws Of Sealing Lips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

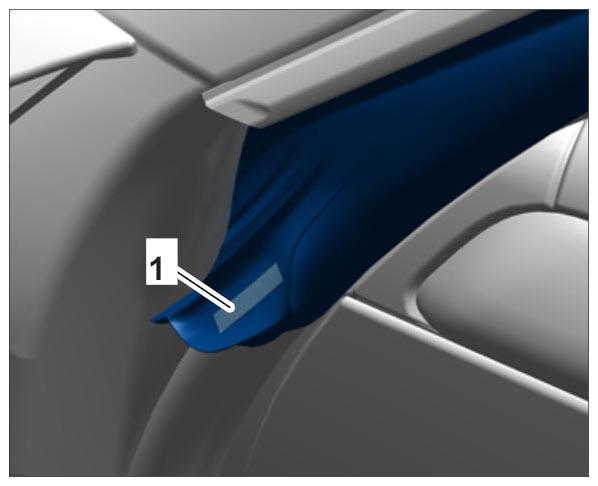

Separate bonded joint -1- in the A-pillar area.

Fig 3: Separating Bonded Joint
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Check bonded joint and replace adhesive strips if necessary.

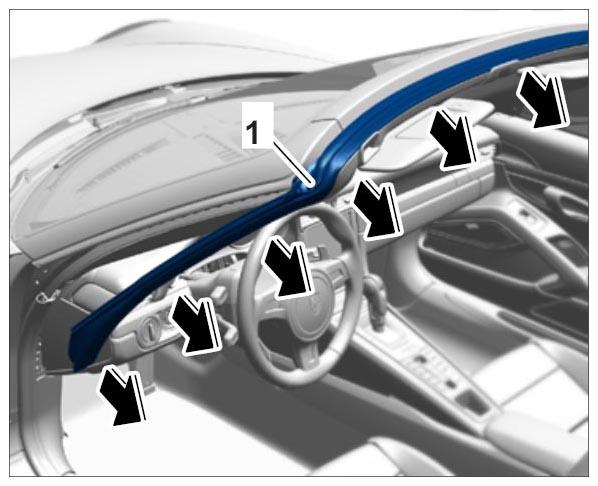

Pull off seal -1- all the way around.

Fig 4: Removing Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
