Installing Convertible Top Lock
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
Information

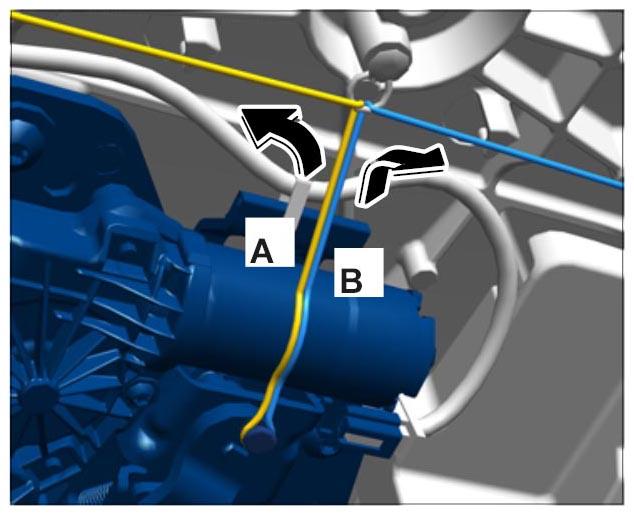

- Check that the control cables are routed correctly.
Do not cross over control cables -A- and -B- .
Information
Align convertible top lock according to the markings made during removal.
When installing a new roof frame, stake the convertible top lock at the bore using a mandrel.
Installation is performed in reverse order to removal.
Tightening torque 2.8 Nm (2 ftlb.)
Tightening torque 36 Nm (27 ftlb.)
