Installing Convertible Top

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check fixing clips for damage and replace them if necessary.

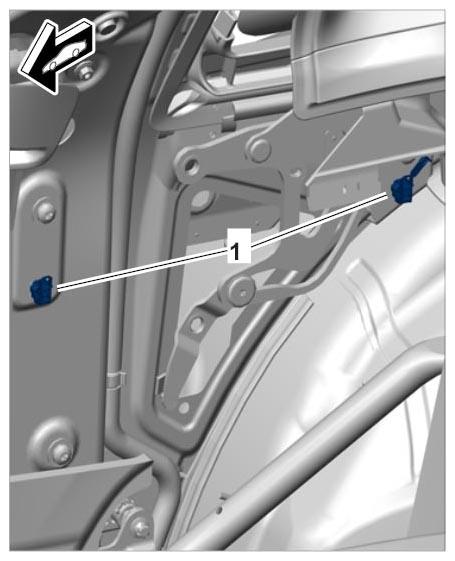

    Fig 1: Checking Fixing Clips
    G09994388Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Carefully fit the convertible top on the fixing clips with the help of another person.

    Further installation is performed in reverse order to removal.

  3. Fastening screw for convertible top support. Tightening torque 23 Nm (17 ftlb.)
  4. Fastening screw for rear side window. Tightening torque 9.7 Nm
  5. Fastening screw for hydraulic cylinder. Tightening torque 9.7 Nm (7.5 ftlb.)
