Technical Values
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic Value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening Screw Securing Front Apron To Body, Top | Item 2 | Tightening Torque | 3.2 Nm (2 ft. lbs.) | +/-0.6 Nm (+/- 0.5 ft. lbs.) | |
|

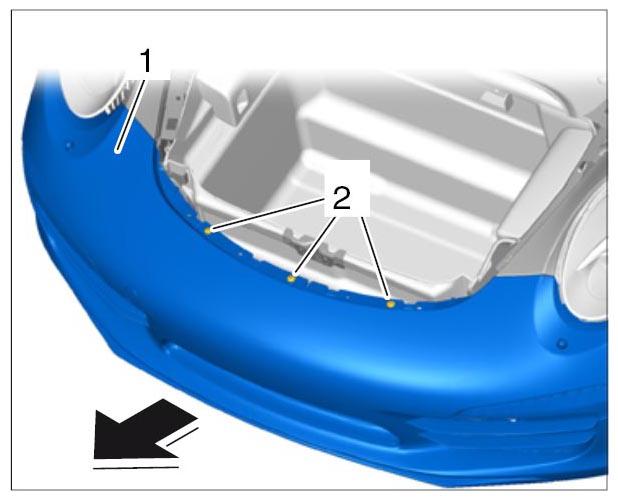

Loosening Front Apron At The Top |
|||||
| Fastening Screw Securing Front Apron To Body, At The Sides | Item 2 | Tightening Torque | 3.2 Nm (2 ft. lbs.) | +/-0.6 Nm (+/- 0.5 ft. lbs.) | |
|

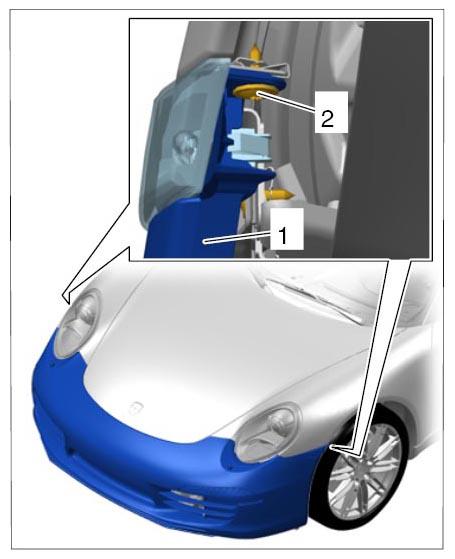

Loosening Front Apron At The Sides |
|||||
| Fastening Screw Securing Front Apron To Body, Bottom | Item 2 | Tightening Torque | 3.2 Nm (2 ft. lbs.) | +/-0.6 Nm (+/- 0.5 ft. lbs.) | |
|

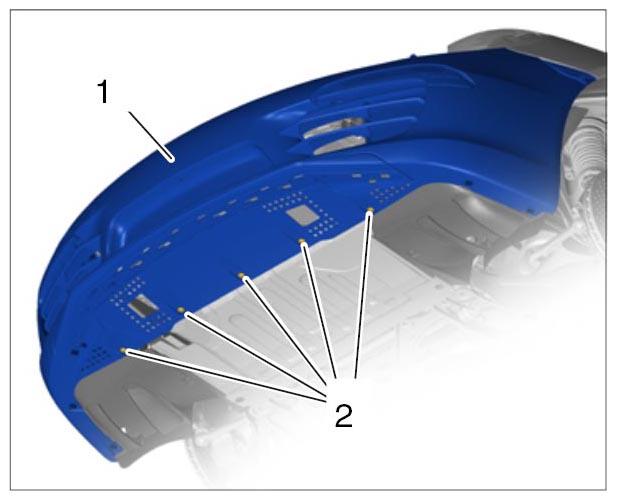

Loosening Front Apron At The Bottom |
|||||
