Installing Front Three-Point Belt

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The seat-belt pretensioner may only be installed when the ground terminal of the vehicle battery is disconnected.
The vehicle battery may only be re-connected after the seat belt has been re-installed.
Ensure that belt strap can run properly!

Guide the seat belt at the left to the door sill. -arrow A- Turn the fitting 180 degrees (clockwise) -arrow B- .
1. 1.1. Tighten fastening screw.
Guide the seat belt at the right to the door sill. -arrow A- Turn the fitting 180 degrees (anti-clockwise) -arrow B- .
1. 2.1. Tighten fastening screw.

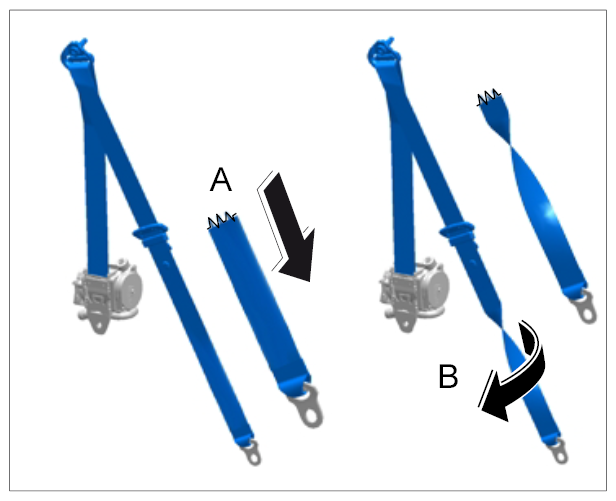

Fig 1: Guiding Seat Belt On Coupe (Left Side)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Installation is performed in reverse order to removal.
Fastening screw on door sill. Tightening torque 50 Nm (37 ftlb.)
Fastening screw securing fitting to B-pillar. Tightening torque 50 Nm (37 ftlb.)

Fastening screw for belt retractor. Tightening torque 50 Nm (37 ftlb.)

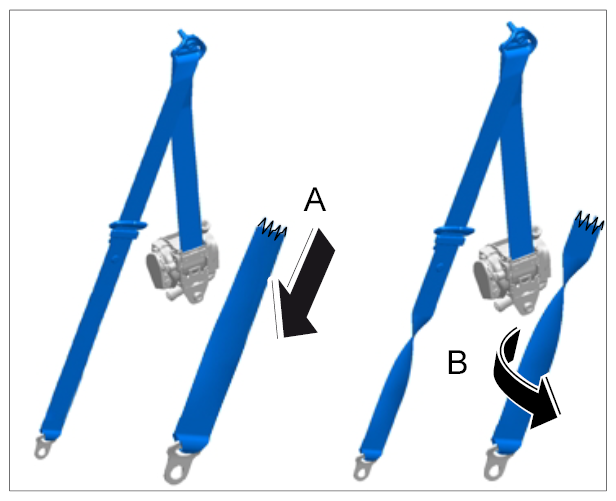

Fig 2: Guiding Seat Belt On Coupe (Right Side)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
