Installing Parking-Brake Shoes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Observe correct tightening torques.

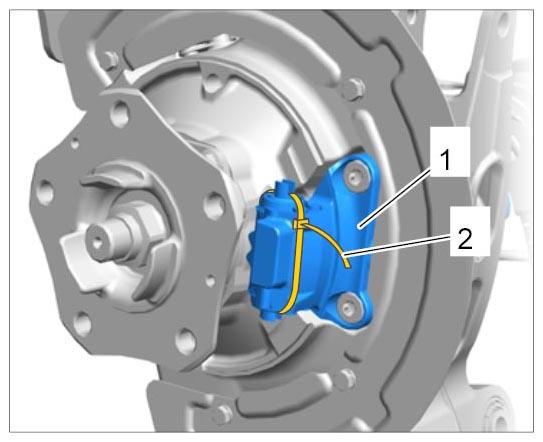

Remove tie-wrap -2- on actuator -1- for parking brake.

Fig 1: Identifying Actuator (Servo Motor) For Parking Brake Secured With Tie-Wrap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Preloaded or pressurized components
- Risk of injury (e.g. crushing or bruising) when removing and installing springs.
→ Do not reach into the danger area.

→ Relieve the tension on components before starting work.

→ Secure components to prevent them from loosening suddenly.

→ Wear protective gloves and goggles.

→ Be very careful when working on the brake system.
The parking-brake shoes -1- are installed in reverse order.

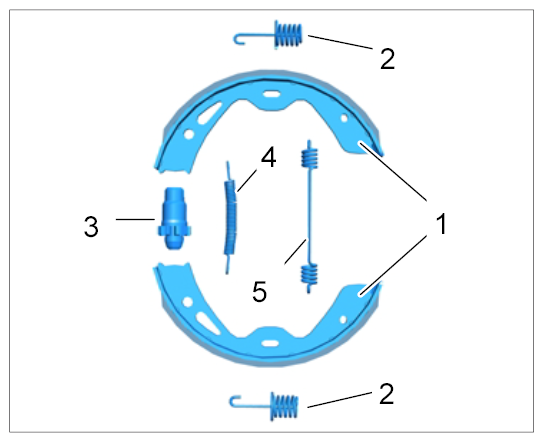

Fig 2: Identifying Brake Shoe Components
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Fit parking-brake shoes with adjustment device -1 and 3- .
2. 2.2. Engage both tension springs -4 and 5- .
3. 2.3. Install compression springs -2- .
4. 2.4. Centre the entire unit.
