WM 347419 Removing And Installing Transmission Oil Cooler (Gt3 & Gt3 RS): Information

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

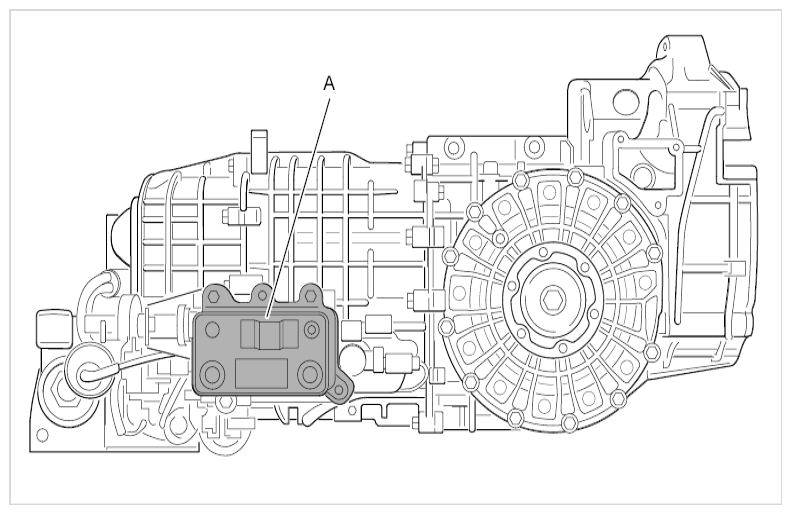

Fig 1: Overview Of Transmission Oil Cooler
G09823945Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Transmission oil cooler (oil/water heat exchanger)
