Installing Transmission Oil Cooler

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install oil cooler.
1. 1.1. Fit oil cooler -1- with new sealing rings on the cooler bracket and screw in fastening screws -3- .
  → Tightening torque: 10 Nm (7.5 ft. lb.)
2. 1.2. Fit cooler bracket with transmission oil cooler on oil pump.
3. 1.3. Screw in hexagon socket head bolt between cooler bracket and oil pump.
  → Tightening torque: 10 Nm (7.5 ft. lb.)
4. 1.4. Screw in connecting screws between holder and transmission housing.
  → Tightening torque: 23 Nm (17 ft. lb.)

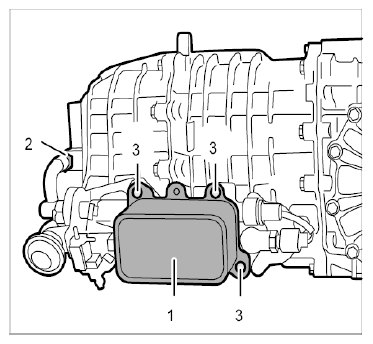

Fig 1: Installing Transmission Oil Cooler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect coolant hose to oil cooler.
Remove special tool Hose Clamp VW 3093 from coolant hoses.
Connect transmission oil line.
Screw transmission oil line between the transmission oil cooler and transmission onto the transmission oil cooler.

→ Tightening torque: 34 Nm (25 ft. lb.)
Engage coolant lines for the heating supply and return lines.
Slide the coolant lines for the heating supply and return lines over the holders on the underbody panel towards the front and engage the lines in the plastic clips.
Connect electric connections.
Route electric line and plug in electric connections.

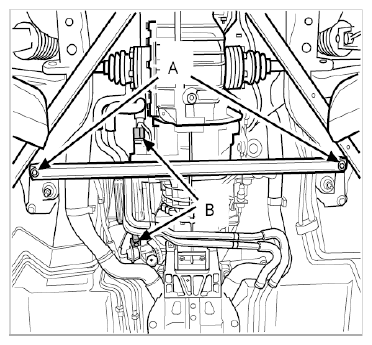

Fig 2: Identifying Lower Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install transverse strut.
→ Tightening torque: 65 Nm (48 ft. lb.)
