Disassembling Front Transmission Case Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

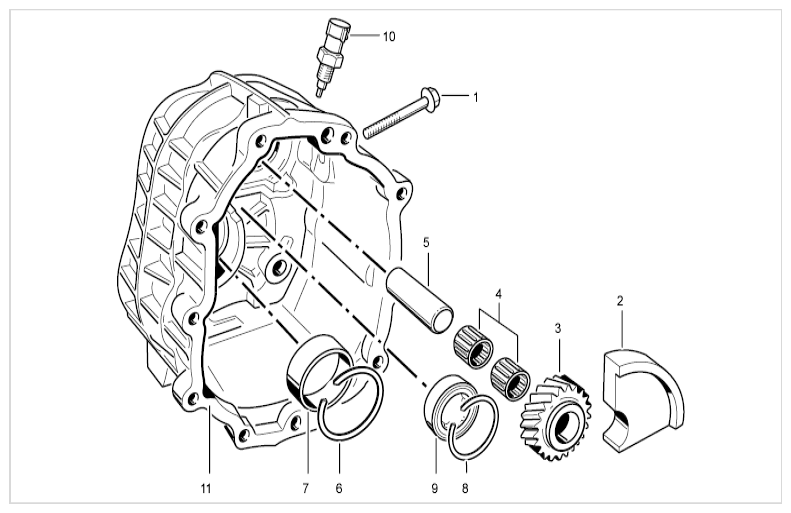

Fig 1: Overview Of Transmission Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw
Bearing segment
Reverse idler gear
Needle-roller bearing
Bolt
Snap ring, large
Outer bearing ring
Snap ring, small
Cylindrical-roller bearing
Reversing-light switch
Transmission cover

Remove gear segment, reverse idler gear and needle-roller bearing.
1. 1.1. Undo hexagon-head bolt -1- .
2. 1.2. Remove gear segment, reverse idler gear and needle-roller bearing -2, 3, 4, 5- .
Clamp transmission cover in vise.

Fig 2: Clamping Transmission Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Extract outer bearing ring for output shaft.
1. 3.1. Remove snap ring -6- using pair of pliers
2. 3.2. Attach internal puller Internal Puller Nr. 108 Pos. 6 behind outer bearing ring. Check it is correctly seated.

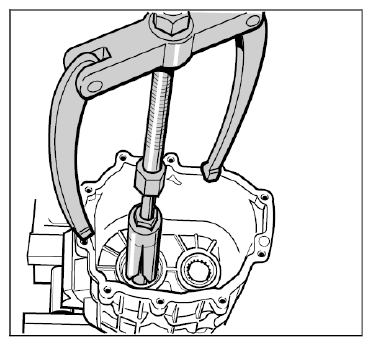

  Fig 3: Identifying Internal Puller
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 3.3. Internal puller Screw On Internal Puller Nr. 108 Pos. 6 with counter support Counter Support Nr. 107 and extract outer bearing ring -7- by turning the nut on the counter support.
Extract cylinder-roller bearing on output shaft.
1. 4.1. Remove snap ring -8- using pair of pliers.
2. 4.2. Attach internal puller Internal Puller Nr. 108 Pos. 5 behind cylinder-roller bearing -9- . Check it is correctly seated.

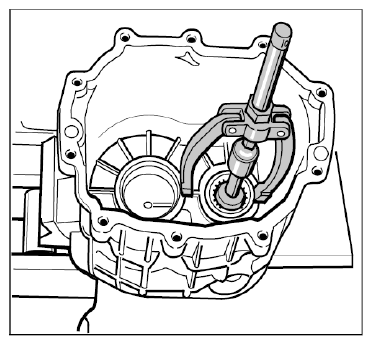

  Fig 4: Extracting Cylinder-Roller Bearing
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 4.3. Screw on internal puller Internal Puller Nr. 108 Pos. 5 with counter support Counter Support Nr. 106 and extract cylinder-roller bearing -9- by turning the nut on the counter support.
Remove back-up light switch.
Unscrew back-up light switch -10- .
