Removing Front Transmission Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front transmission cover.

    Unscrew screws -1-  and force front transmission cover off using a suitable rubber hammer.

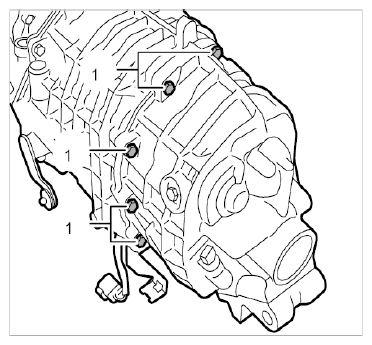

    Fig 1: Identifying Front Transmission Cover Screws
    G09823826Courtesy of PORSCHE CARS NORTH AMERICA, INC.
