WM 343537 Disassembling And Assembling Transmission (Turbo Coupe, Turbo S Coupe, Turbo CABRIO & Turbo S CABRIO): Information

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

All needle-roller bearings that are not replaced must be designated in terms of installation position and the relevant gear wheel.

Information

Gear wheels may only be replaced in pairs. Always fit used needle-roller bearings with the same gear wheel and in the same running direction.

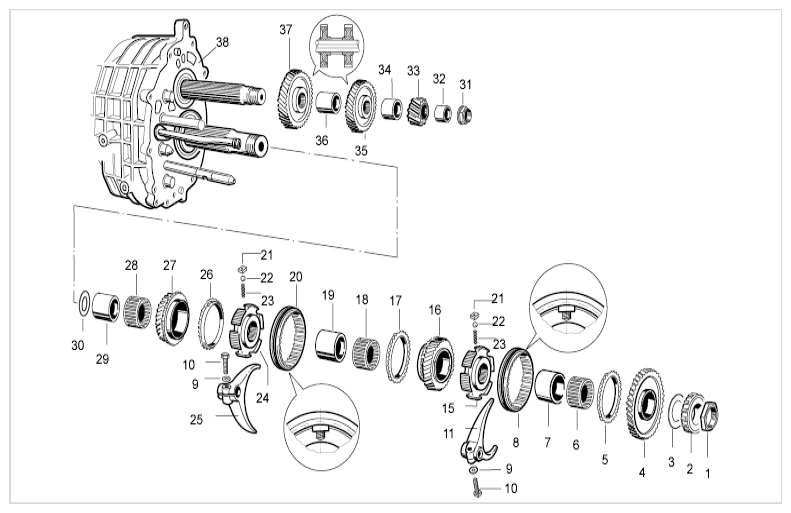

Fig 1: Overview Of Front Gear Wheel Set
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

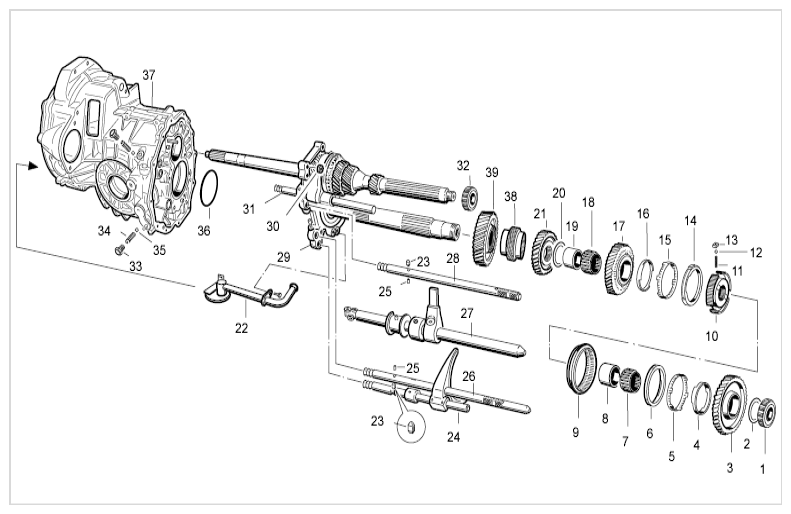

Fig 2: Overview Of Middle Gear Wheel Set
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
