Removing Transmission

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip coolant lines from the holders.

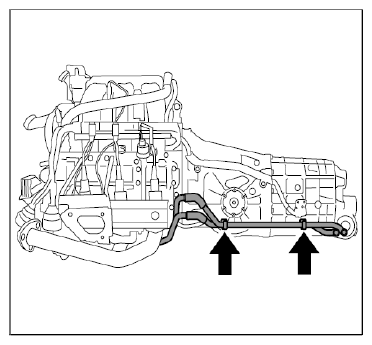

    Fig 1: Locating Coolant Lines
    G09823740Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove cable duct. To do this, unscrew the screws and move the cable duct towards the engine.

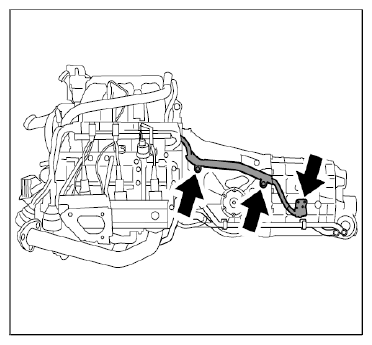

    Fig 2: Locating Cable Duct
    G09823741Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Attach transmission to workshop crane.
    NOTE: Mechanical overload of components
    • Component will be damaged irreparably

    → Observe guidelines for assembly and disassembly

    Information

    When you loosen the flange screws between the transmission and engine, the screws -1 and 2-  must first be loosened and unscrewed. If this is not done, the engine housing can be damaged irreparably.

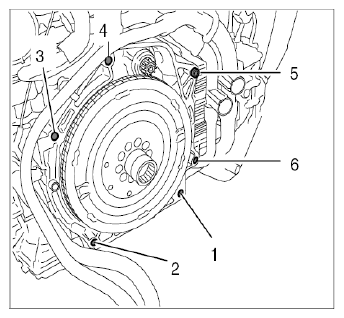

    Fig 3: Identifying Flange Screws Loosening Sequence
    G09823742Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Unscrew the two bottom fastening screws between the engine and transmission.
  5. Unscrew the remaining fastening screws.
  6. Remove the transmission by guiding it towards the rear.
