Securing Shift And Selector Cables On The Transmission

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The assembly and transport sleeves that are fitted on the adjustment pins of the shift cable must not be removed until just before you engage the adjustment pins in the gearshift bracket.

Information

The shift and selector cables must be routed above the transmission support.

Press the shift and selector cables through the body opening from below.
Apply a coating of lubricant (e.g. Contifix tire mounting paste) on the rubber sleeve and B+ wire in the area of the body opening, insert the B+ wire in the rubber sleeve and press rubber sleeve into the body opening.

Fig 1: Installing Rubber Sleeve In Body Opening
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Engage shift cable -1- (grey end piece) and selector cable -2- (blue end piece) into support bracket on the transmission and press end pieces onto ball heads.

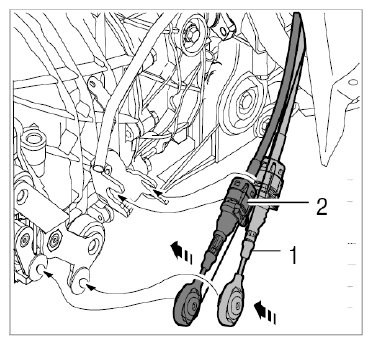

Fig 2: Connecting Shift Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fit transmission support.

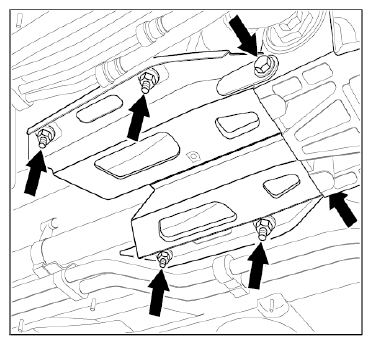

Fig 3: Locating Transmission Support Mounting Bolts

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Transmission support		Tightening torque	65 Nm (48 ft. lb.)
