Removing Gearshift Bracket

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

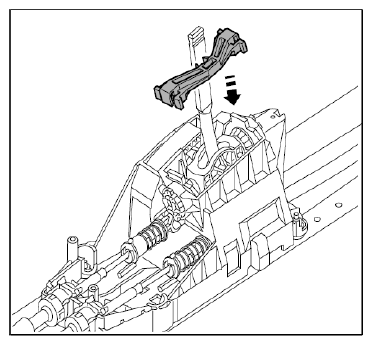

Locking Bridge 9619/1 must be fitted on the gearshift bracket.

Fig 1: Fitting Locking Bridge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

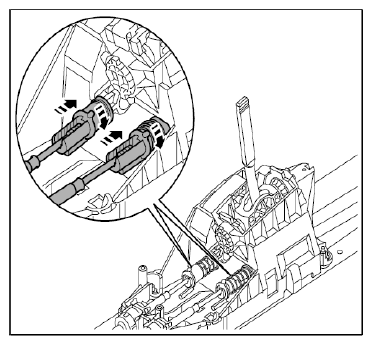

Open bayonet locks on the pre-selector and shifting connections.

Fig 2: Opening Bayonet Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disengage adjustment pin on pre-selector and shifting connections.

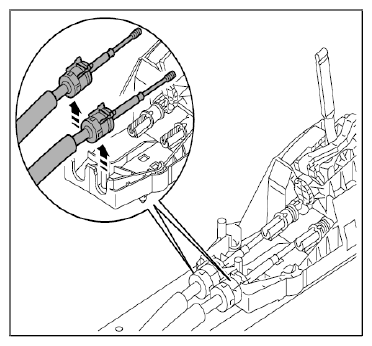

Fig 3: Disengaging Shift Cables
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

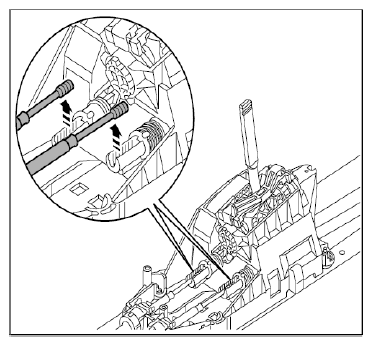

Unclip supports on the gearshift bracket.

Fig 4: Unclipping Supports
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

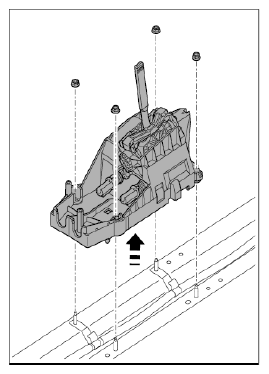

Unscrew nut and lift gearshift bracket up and off.

Fig 5: Removing Gearshift Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

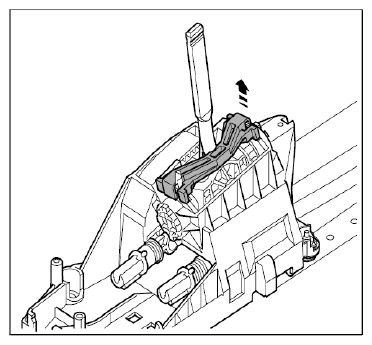

Remove locking bridge.

Fig 6: Removing Locking Bridge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
