Removing Shift Lever Knob

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip retaining frame for the leather sleeve in an upward direction using an assembly wedge.

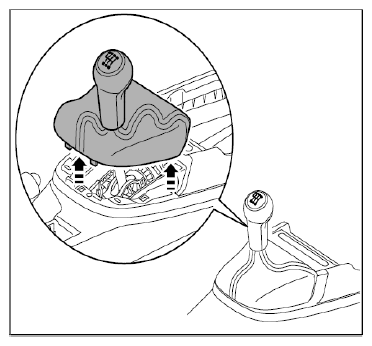

    Fig 1: Unclipping Leather Sleeve
    G09823649Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Turn leather sleeve clockwise by 90° as far as it will go.
    Fig 2: Turning Leather Sleeve Clockwise
    G09823650Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Pull shift-lever knob up and off the shift lever.

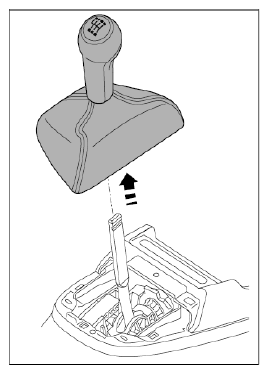

    Fig 3: Pulling Off Shift-Lever Knob
    G09823651Courtesy of PORSCHE CARS NORTH AMERICA, INC.


  1. Unclip retaining frame for the leather sleeve in an upward direction using an assembly wedge.
    Fig 1: Unclipping Leather Sleeve
    G09823655Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Turn leather sleeve clockwise by 90° as far as it will go.

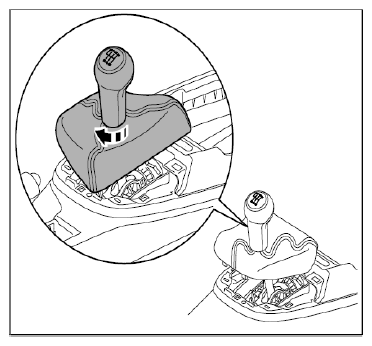

    Fig 2: Turning Leather Sleeve Clockwise
    G09823656Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Pull shift-lever knob up and off the shift lever.
    Fig 3: Pulling Off Shift-Lever Knob
    G09823657Courtesy of PORSCHE CARS NORTH AMERICA, INC.
