Installing Shift Lever Knob

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push shift-lever knob fully onto the shift lever.
    Fig 1: Pushing On Shift-Lever Knob
    G09823652Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Turn leather sleeve anti-clockwise by 90° as far as it will go.
    Fig 2: Turning Leather Sleeve Anti-Clockwise
    G09823653Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Clip retaining frame of the leather sleeve into the center console
    Fig 3: Clipping In Leather Sleeve
    G09823654Courtesy of PORSCHE CARS NORTH AMERICA, INC.

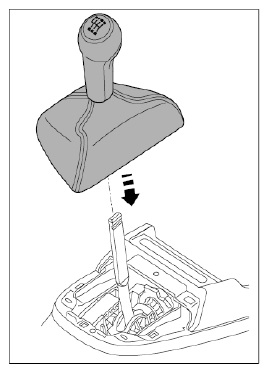

  1. Push shift-lever knob fully onto the shift lever.
    Fig 1: Pushing On Shift-Lever Knob
    G09823658Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Turn leather sleeve anti-clockwise by 90° as far as it will go.
    Fig 2: Turning Leather Sleeve Anti-Clockwise
    G09823659Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Clip retaining frame of the leather sleeve into the center console
    Fig 3: Clipping In Leather Sleeve
    G09823660Courtesy of PORSCHE CARS NORTH AMERICA, INC.
