Topping Up Transmission Oil
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
Information
- Secure vehicle to prevent it rolling away.
- To check transmission oil the vehicle must be horizontal.

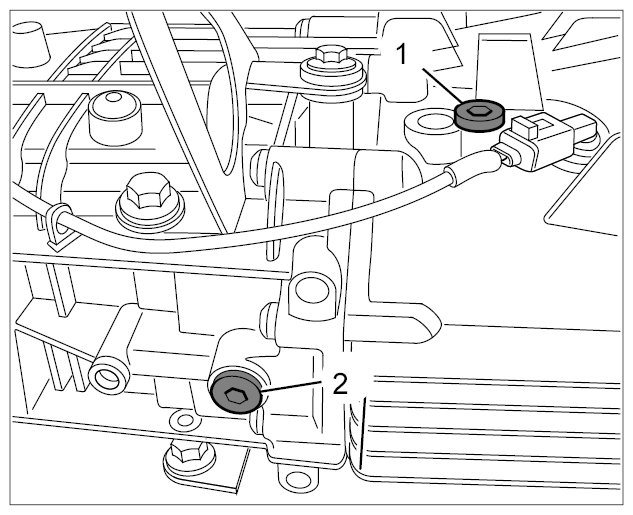

- Unscrew oil inspection plug -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Information
Use only oil approved by Porsche.
- Fill with oil up to the bottom edge of the oil inspection plug.
- Screw in a new oil inspection plug -1- . → Tightening torque: 35 Nm (26 ftlb.)
