Removing Positive Crankcase Ventilation Valve

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove positive crankcase ventilation valve -1-  .
    1. 1.1. Unclip line -2-  from positive crankcase ventilation valve.
    2. 1.2. Unscrew screw on positive crankcase ventilation valve.
    3. 1.3. Pull positive crankcase ventilation valve -1-  off the cylinder head cover.

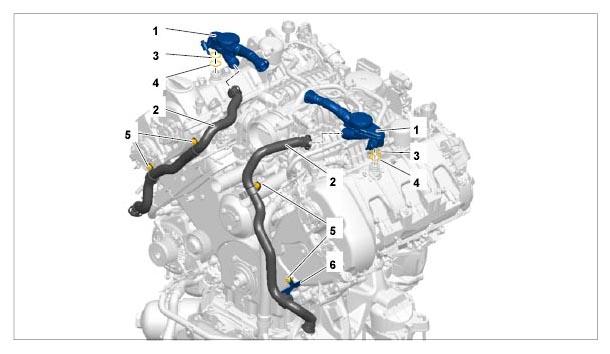

      Fig 1: Identifying Positive Crankcase Ventilation
      G09804273Courtesy of PORSCHE CARS NORTH AMERICA, INC.
