Removing Left Engine Mounting

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press against the engine mounting from below and loosen the fastening nuts on the engine mounting.

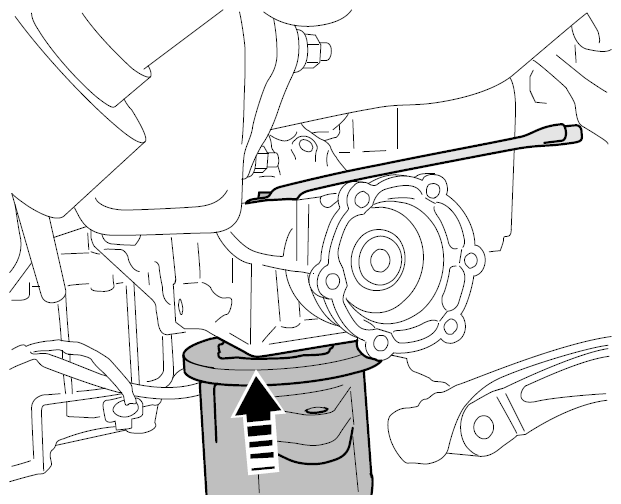

    Fig 1: Loosening Engine Mounting (4WD Turbo)
    G09804232Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove the engine mounting and nuts from the guide.

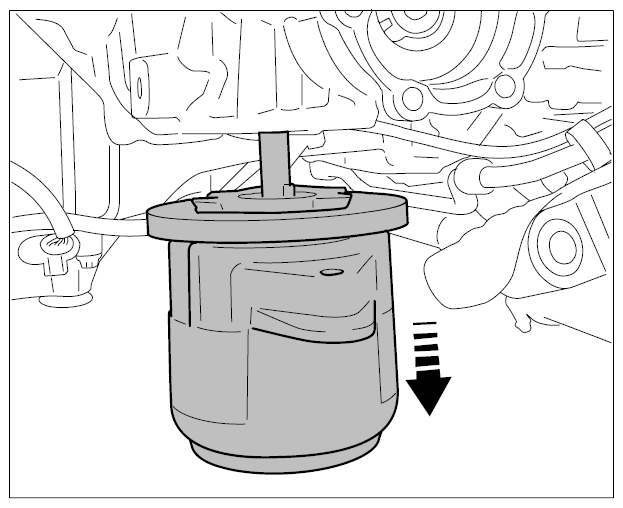

    Fig 2: Removing Engine Mounting (4WD Turbo)
    G09804233Courtesy of PORSCHE CARS NORTH AMERICA, INC.
