Left Engine Mounting

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

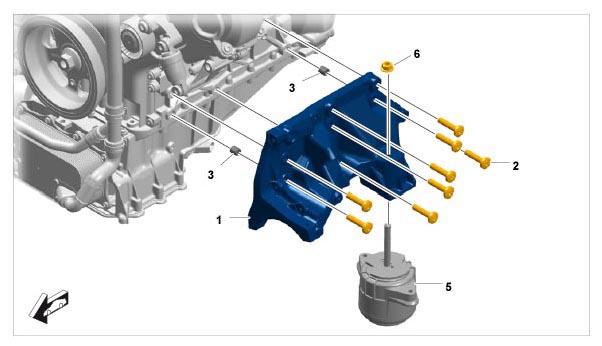

    Fig 1: Identifying Left Bracket For Auxiliary Units And 2WD Engine Mounting
    G09804227Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Bracket for auxiliary units
  2. Screw, M10 x 45
  3. Dowel sleeve
  4. Engine carrier
  5. Hydraulic mount, left
  6. M12 nut
