Removing Oil Spray Jets

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

The type of oil spray jets used depends on the engine number. Always check the engine number when ordering new oil spray jets.
For specific allocations, always check the Porsche Spare Parts Catalogue.
Adapted software must be installed on the control unit if necessary due to modified oil pressures.

Remove oil spray jets -6- . To do this, loosen screws -7- .

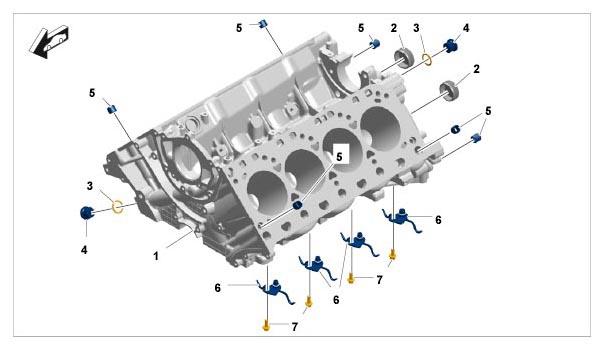

Fig 1: Identifying Upper Part Of Crankcase - V8
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

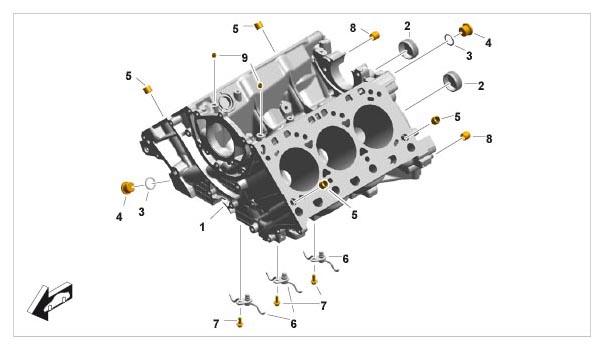

Fig 2: Identifying Upper Part Of Crankcase - V6
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
