Overview Of Sensors, Senders And Valves

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

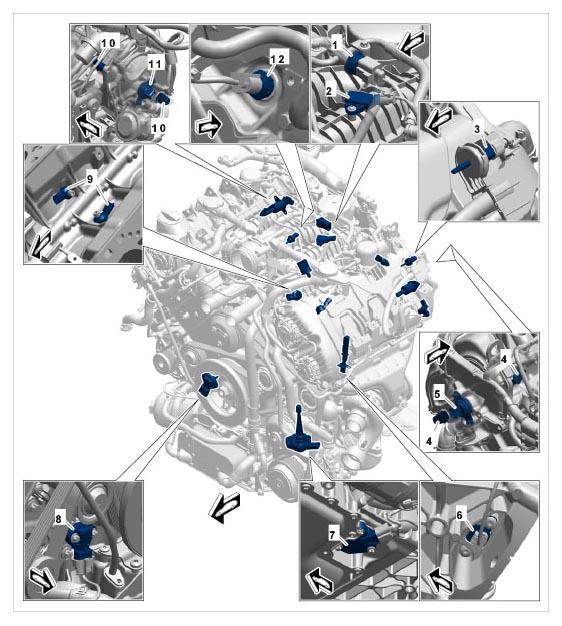

Fig 1: Identifying Sensors, Senders And Valves
G09805232Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Pressure sensor (low-pressure)
  2. Pressure and temperature sensor
  3. Temperature sensor
  4. Phase sensor
  5. Hydraulic valve for valve lift adjustment
  6. rpm sensor
  7. Oil level sensor
  8. Oil pressure sender with temperature sensor
  9. Knock sensor
  10. Hydraulic valve for valve lift adjustment
  11. Phase sensor
  12. Coolant temperature sensor → Tightening torque: 30 Nm (22 ftlb.)
