Exhaust Manifold/Turbocharger, Cylinders 1-3

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

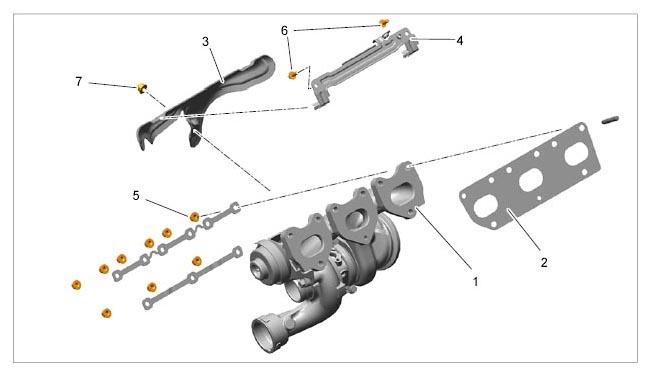

Fig 1: Exploded View Of Exhaust Manifold/Turbocharger, Cylinders 1-3
G09805251Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Exhaust manifold/turbocharger
  2. Manifold seal/replace
  3. Heat shield
  4. Holder
  5. Nut, M8/replace → Initial tightening: 20 Nm (15 ftlb.) → Final tightening: 27 Nm (20 ftlb.)
  6. Screw, M6 x 12 → Tightening torque: 10 Nm (7.5 ftlb.)
  7. Nut, M6 → Tightening torque: 10 Nm (7.5 ftlb.)
