Catalytic Converter

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

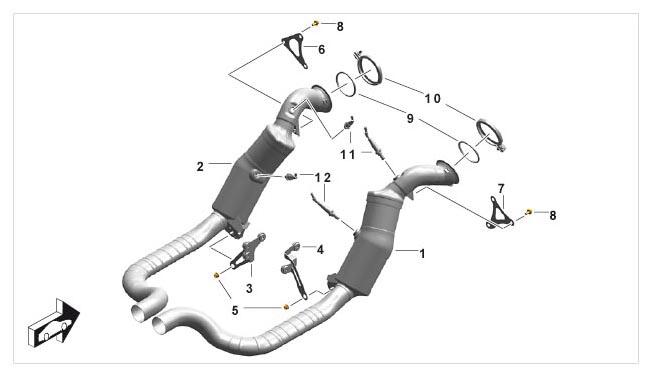

Fig 1: Exploded View Of Catalytic Converter
G09805254Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Catalytic converter for cylinders 1-3
  2. Catalytic converter for cylinders 4-6
  3. Holder, lower left
  4. Holder, lower right
  5. Nut → Tightening torque: 23 Nm (17 ftlb.)+/-2 Nm (+/-1.5 ftlb.)
  6. Holder, upper left
  7. Holder, upper right
  8. Screw
  9. Seal/replace
  10. Clamp → Tightening torque: 13 Nm (9.5 ftlb.)+1 Nm (+0.5 ftlb.)
  11. Oxygen sensor ahead of catalytic converter
  12. Oxygen sensor downstream of catalytic converter
