Fuel Injectors And Fuel Collection Pipe

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

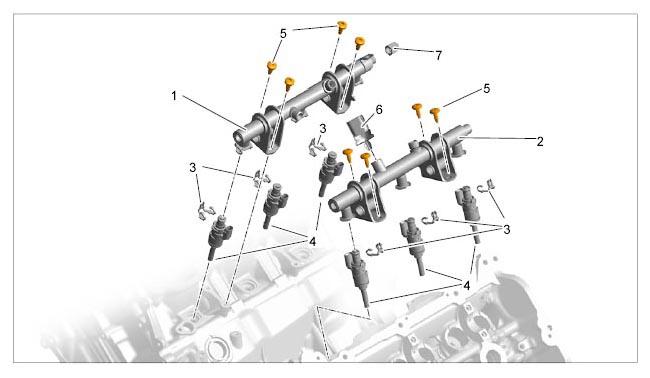

Fig 1: Exploded View Of Fuel Injectors
G09805245Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Fuel collection pipe for cylinder 1-3
  2. Fuel collection pipe for cylinder 4-6
  3. Fuel injector holder
  4. Fuel injector
  5. Screw, M6 x 16 → Tightening torque: 10 Nm (7.5 ftlb.)
  6. Fuel pressure sensor (high-pressure sensor) → Tightening torque: 20 Nm (15 ftlb.)
  7. Stopper → Tightening torque: 25 Nm (19 ftlb.)
