DME Control Unit
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

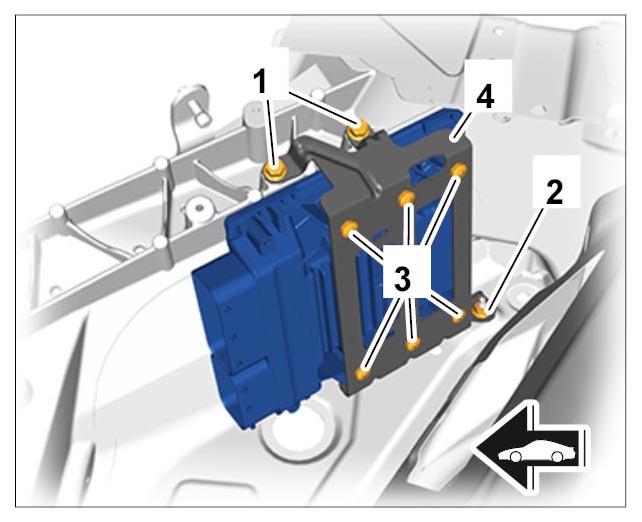

- Fastening nut for control unit holder
- Fastening nut for control unit holder
- Fastening screws for control unit holder
- Control unit holder.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening nut for control unit holder | -1- and -2- | Tightening torque | 9.7 Nm (7.5 ftlb.) | ||
| Fastening screws for control unit holder | -3- | Tightening torque | 9.7 Nm (7.5 ftlb.) |
