Control Lines For Boost Pressure And Ambient Air

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

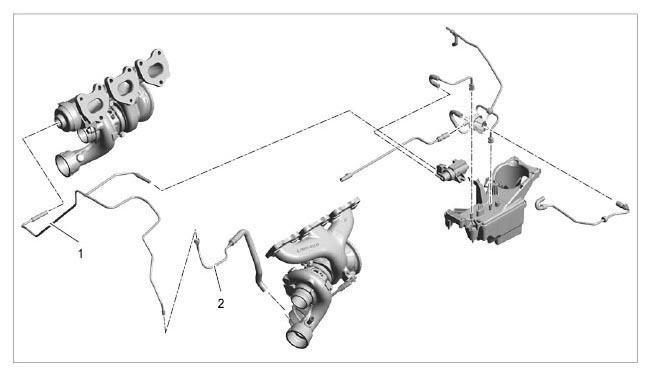

Fig 1: Identifying Control Lines For Boost Pressure And Ambient Air
G09805239Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Control line for cylinder 1-3
  2. Control line for cylinder 4-6
