Preliminary Work

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Partly detach side trim panel for rear luggage compartment at the right and fold it aside. → 700319 REMOVING AND INSTALLING SIDE TRIM PANEL FOR REAR LUGGAGE COMPARTMENT

    Measurement 2.2

Overview of connector assignment for high-voltage charger

  1. High-voltage connection for dummy connector
  2. High-voltage connection for high-voltage battery
  3. High-voltage connection for charging socket
  4. 12-volt connection for charging socket
  5. High-voltage connection for electric high-voltage battery heater
    Fig 1: Overview Of Connector Assignment For High-Voltage Charger
    G09805293Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release high-voltage connector -5-  from the high-voltage charger and disconnect it.
  2. Connect high-voltage test adapter High-voltage test adapter HVA 280 WE 1585  to the high-voltage line for the electric high-voltage battery heater. Leave the second connection on the test adapter open.
  3. Perform measurement 2.2.
    1. 3.1. Nominal value: > 550 MOhm
      • If the measured actual values are not within the tolerance range, continue with measurement 2.3.
      • If the measured values are within the tolerance range, continue with measurement 2.4.

    Measurement 2.3



  1. Remove electric high-voltage battery heater → 828119 REMOVING AND INSTALLING ELECTRIC HIGH-VOLTAGE BATTERY HEATER
  2. Release and disconnect high-voltage line from the high-voltage charger to the electric high-voltage battery heater at the electric high-voltage battery heater.

    Measurement 2.3

  3. Connect high-voltage test adapter High-voltage test adapter HVA 280 WE 1585  to the electric high-voltage battery heater.
  4. Perform measurement 2.3.
    1. 4.1. Nominal value: > 550 MOhm
      • If the measured actual values are not within the tolerance range, replace electric high-voltage heater, repeat the measurement and carry out subsequent work once the nominal values have been reached. → Subsequent Work
      • If the measured values are within the tolerance range, continue with measurement 2.3.1.

    Measurement 2.3.1

  1. Connect high-voltage test adapter High-voltage test adapter HVA 280 WE 1585  to the high-voltage line from the electric high-voltage battery heater -1-  to the high-voltage charger. Leave the second connection on the test adapter open.

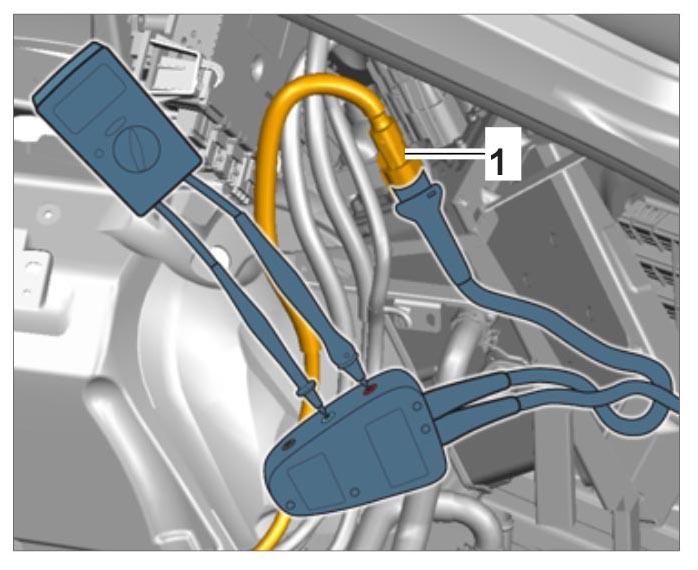

    Fig 1: Connecting High-Voltage Test Adapter HVA 280 WE 1585 To High-Voltage Line From Electric High-Voltage Battery Heater
    G09805294Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Perform measurement 2.3.1.
    1. 2.1. Nominal value: > 550 MOhm
      • If the measured actual values are not within the tolerance range, replace high-voltage line from the electric high-voltage heater to the high-voltage charger following consultation with Technical Support, repeat the measurement and carry out subsequent work once the nominal values have been reached. → Subsequent Work
      • If the measured values are within the tolerance range, repeat measurement 2.2.

    Measurement 2.4

Overview of connector assignment for high-voltage charger

  1. High-voltage connection for dummy connector
  2. High-voltage connection for high-voltage battery
  3. High-voltage connection for charging socket
  4. 12-volt connection for charging socket
  5. High-voltage connection for electric high-voltage battery heater

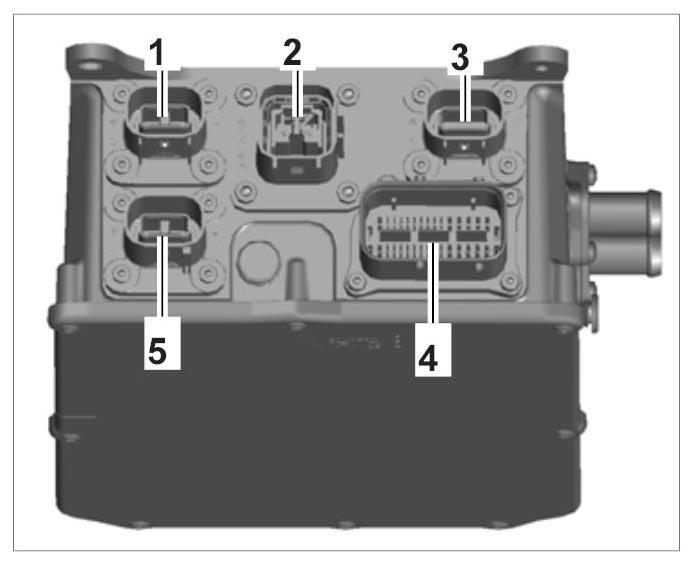

    Fig 2: Overview Of Connector Assignment For High-Voltage Charger
    G09805295Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Measurement 2.4

  1. Connect high-voltage test adapter High-voltage test adapter HVA 280 WE 1585  to the high-voltage charger at the connection -5-  for the electric battery heater. Leave the second connection on the test adapter open.

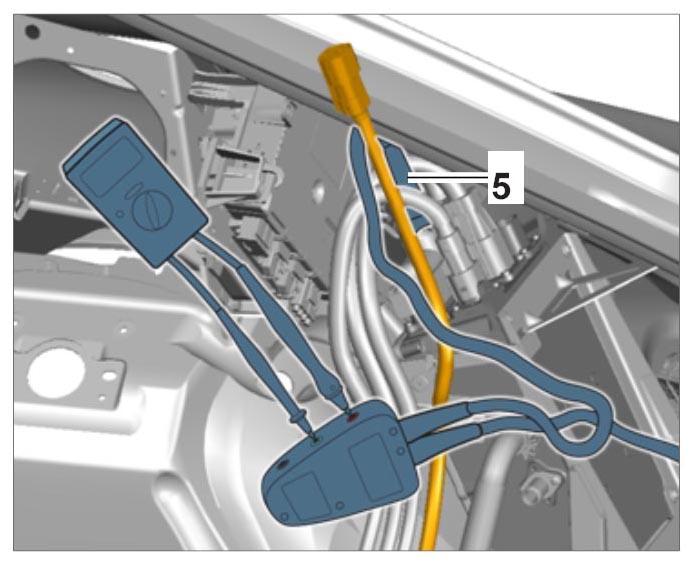

    Fig 3: Connecting To High-Voltage Charger At Connection 5 For Electric Battery Heater
    G09805296Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Perform measurement 2.4.
    1. 2.1. Nominal value: > 550 MOhm
      • If the measured actual values are not within the tolerance range, continue with measurement 2.4.1
      • If the measured values are within the tolerance range, repeat measurement 2.2.

    Measurement 2.4.1

    Fig 4: Overview Of Connector Assignment For High-Voltage Charger
    G09805297Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Leave high-voltage test adapter High-voltage test adapter HVA 280 WE 1585  connected to the high-voltage charger at the connection -5-  for the electric battery heater. Leave the second connection on the test adapter open.
  2. Release and disconnect dummy connector -1-  on the high-voltage charger. High-voltage line -1-  disconnected. High-voltage lines -2, 3-  connected.

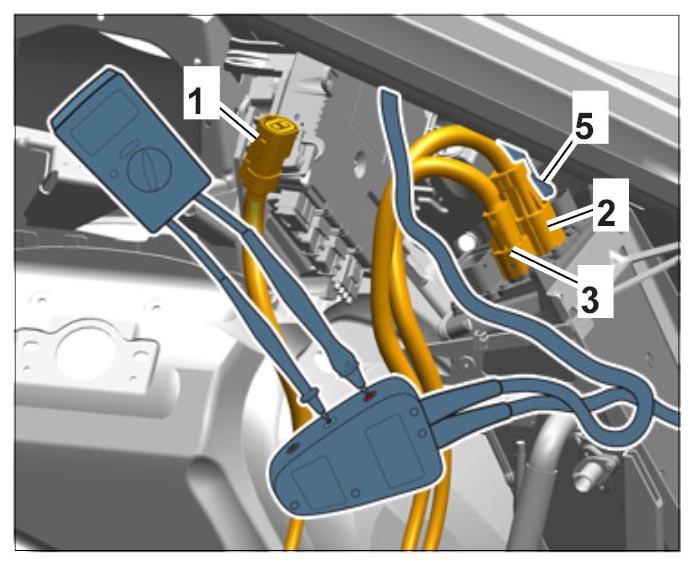

    Fig 5: Connecting To High-Voltage Charger At Connection 5 For Electric Battery Heater
    G09805298Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Perform measurement 2.4.1.
    1. 3.1. Nominal value: > 550 MOhm
      • If the measured actual values are not within the tolerance range, continue with measurement 2.4.3
      • If the measured values are within the tolerance range, continue with measurement 2.4.2.

    Measurement 2.4.2

  1. Connect dummy connector from the high-voltage charger to the high-voltage test adapter High-voltage test adapter HVA 280 WE 1585  . Leave the second connection on the test adapter open.
  2. Perform measurement 2.4.2.
    1. 2.1. Nominal value: > 550 MOhm
      • If the measured actual values are not within the tolerance range, replace dummy connector, repeat the measurement and carry out subsequent work once the nominal values have been reached. → Subsequent Work
      • If the measured values are within the tolerance range, repeat measurement 2.2.

    Measurement 2.4.3

  1. Release and disconnect high-voltage plug connection for the high-voltage line to the high-voltage battery.
  2. Connect high-voltage test adapter High-voltage test adapter HVA 280 WE 1585  to the high-voltage charger at the connection for the electric battery heater. Leave the second connection on the test adapter open.
  3. Perform measurement 2.4.3.
    1. 3.1. Nominal value: > 550 MOhm
      • If the measured actual values are not within the tolerance range, continue with measurement 2.4.5
      • If the measured values are within the tolerance range, continue with measurement 2.4.4.

    Measurement 2.4.4

  1. Disconnect high-voltage test adapter High-voltage test adapter HVA 280 WE 1585  from the high-voltage charger.
  2. Connect high-voltage test adapter High-voltage test adapter HVR 40 WE 1586  to the high-voltage line from the high-voltage battery -1-  to the high-voltage charger.

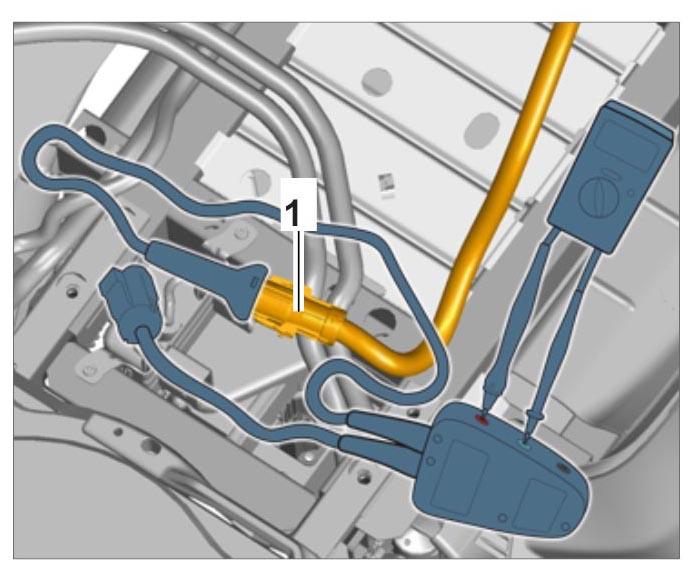

    Fig 6: Connecting High-Voltage Test Adapter HVR 40 WE 1586 To High-Voltage Line
    G09805299Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Perform measurement 2.4.4.
    1. 3.1. Nominal value: > 550 MOhm
      • If the measured actual values are not within the tolerance range, replace high-voltage line from the high-voltage battery to the high-voltage charger, repeat the measurement and carry out subsequent work once the nominal values have been reached. → Subsequent Work
      • If the measured values are within the tolerance range, repeat measurement 2.2.

    Measurement 2.4.5

  1. Release high-voltage connector -3-  for charging socket at the high-voltage charger and disconnect it.

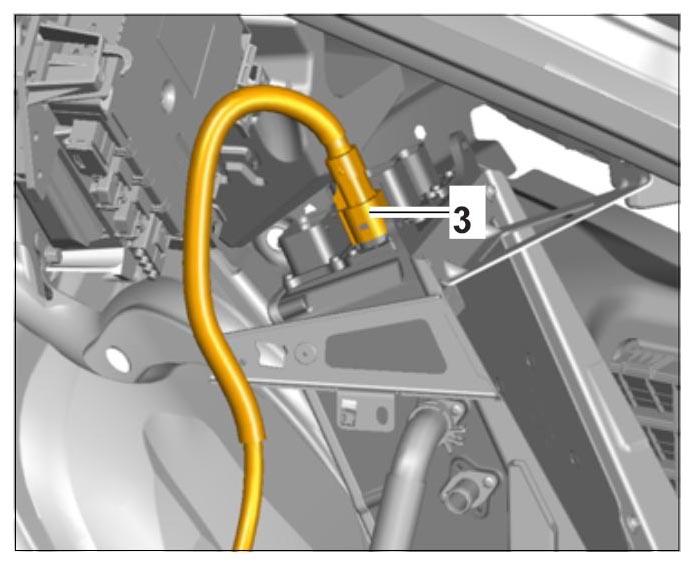

    Fig 7: Charging Socket At High-Voltage Charger
    G09805300Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Connect high-voltage test adapter High-voltage test adapter HVA 280 WE 1585  to the high-voltage charger at the connection -5-  for the electric high-voltage battery heater. High-voltage lines -1, 2, 3-  disconnected. Leave the second connection on the test adapter open.

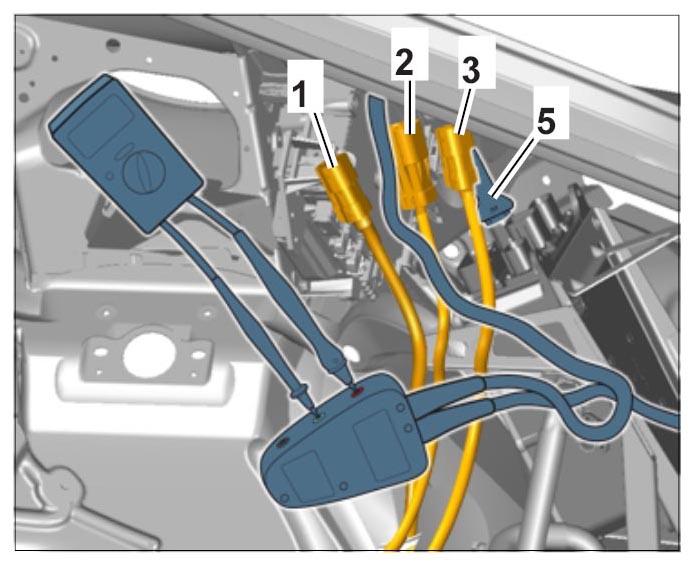

    Fig 8: Connecting High-Voltage Test Adapter HVA 280 WE 1585 To High-Voltage Charger
    G09805301Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Perform measurement 2.4.5.
    1. 3.1. Nominal value: > 550 MOhm
      • If the measured actual values are not within the tolerance range, replace high-voltage charger, repeat the measurement and carry out subsequent work once the nominal values have been reached. → Subsequent Work
      • If the measured values are within the tolerance range, replace the high-voltage line from the charging socket to the high-voltage charger, repeat the measurement and carry out subsequent work once the nominal values have been reached. → Subsequent Work
