Battery Trickle Charging
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
→ "Workshop Equipment and Special Tools Manual" Battery chargers.
Information
- When working or carrying out tests on the vehicle or when the vehicle is in the workshop, a battery charger with a rated current of at least 40 A must be connected.
- As soon as the vehicle is unlocked, e.g. the vehicle is in the workshop or salesroom, it must be trickle charged with a battery charging device.
NOTE:
Using charging cables/jump leads directly on the vehicle battery.
- Risk of damage to battery sensors.
→ Always connect charging cables/jump leads to the external power supply for jump-lead starting.

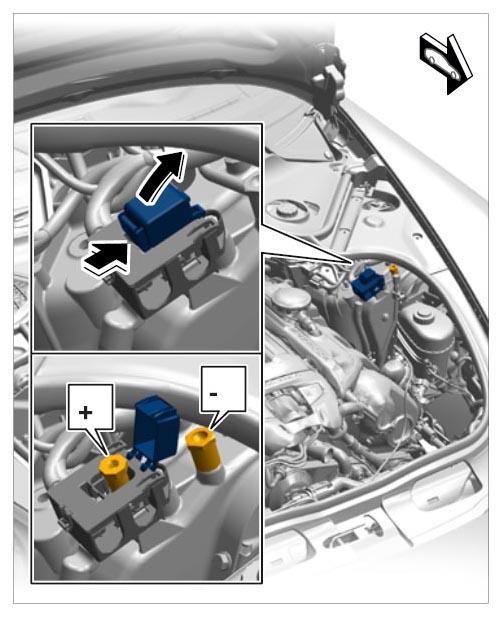

- Open protective cover on the positive terminal for jump-lead starting -+- (-arrow- ).
- First, connect the positive cable from the charger to the positive terminal -+- .
- Connect the negative cable from the charger to the ground point for jump-lead starting - .
- Read operating instructions for the charger.
- Switch off all loads.
- Switch on the charger.
