Removing Front Centre Console Antenna

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Detach the two wire harnesses -1-  by pulling them off the holder -2-  for the KESSY antenna.
  2. Unscrew and remove the four fastening screws -3-  .

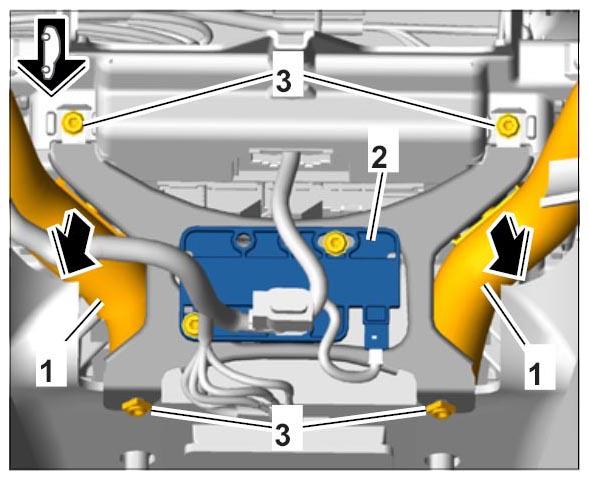

    3. Fig 1: Removing Wire Harness For KESSY Antenna (Front Centre Console)
    G09814995Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unscrew and remove the two fastening screws -1-  .

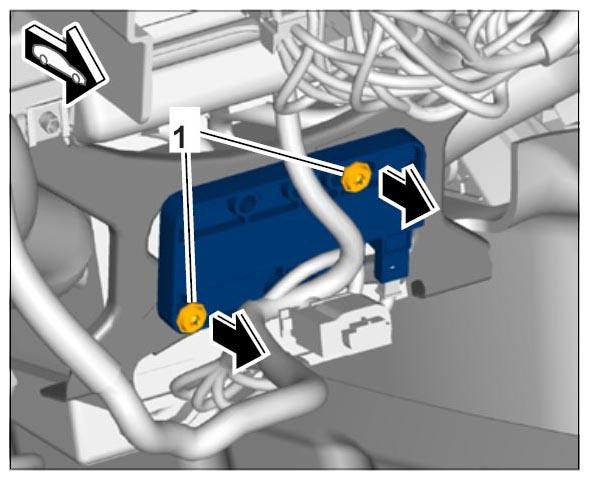

    Fig 2: Removing KESSY Antenna (Front Centre Console)
    G09814996Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Disconnect electric plug connection -1-  and remove KESSY antenna.

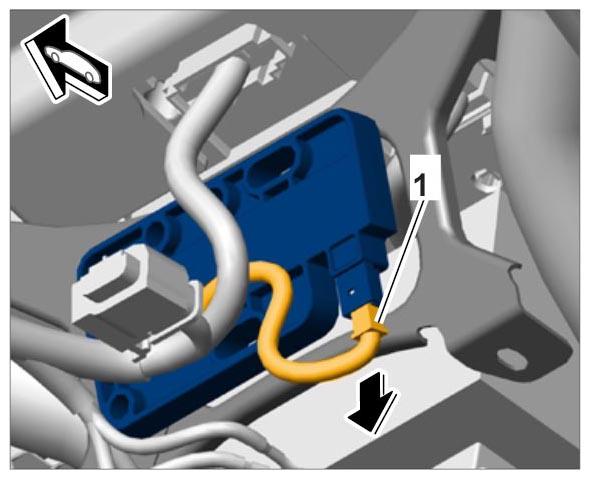

    Fig 3: Disconnecting Electric Plug Connection
    G09814997Courtesy of PORSCHE CARS NORTH AMERICA, INC.
