Installing Rear Centre Console Antenna

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Insert electric plug connection -1- until the connector engages securely.

Fig 1: Connecting Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

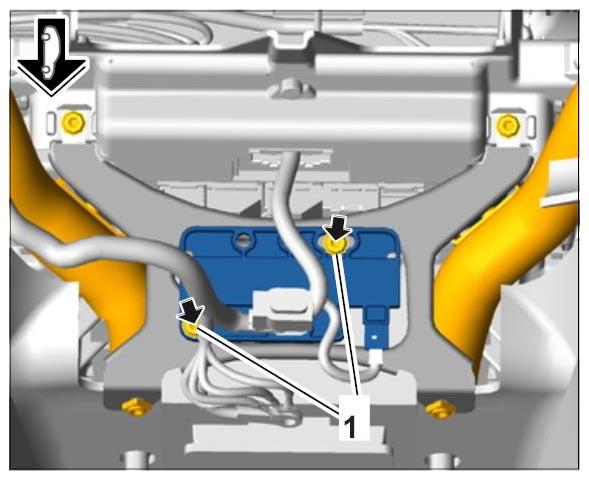

Place the antenna in position and screw in the two fastening screws -1- . → Tightening torque: 2.5 Nm (2 ftlb.)

Fig 2: Installing KESSY Antenna (Front Centre Console)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
