Installing Switch Console

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

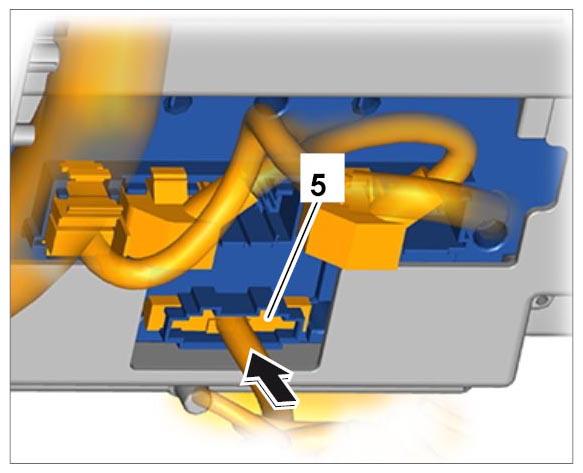

Connect plug connection -5- until it engages securely.

Fig 1: Connecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

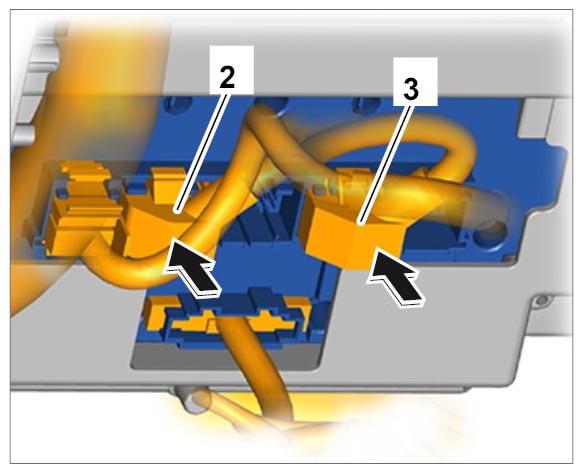

Connect plug connections -2- and -3- until they engage securely.

Fig 2: Connecting Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

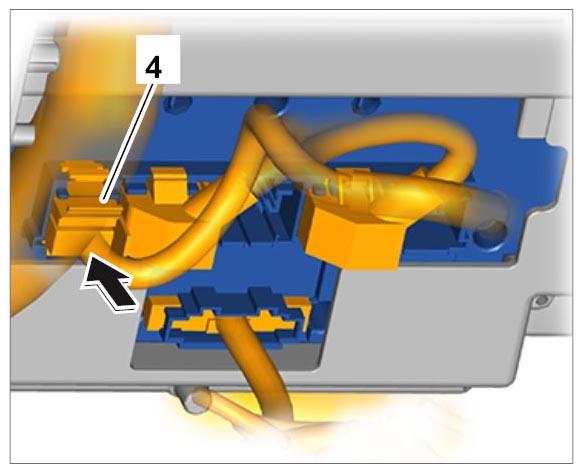

Connect plug connection -4- until it engages securely.

Fig 3: Connecting Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

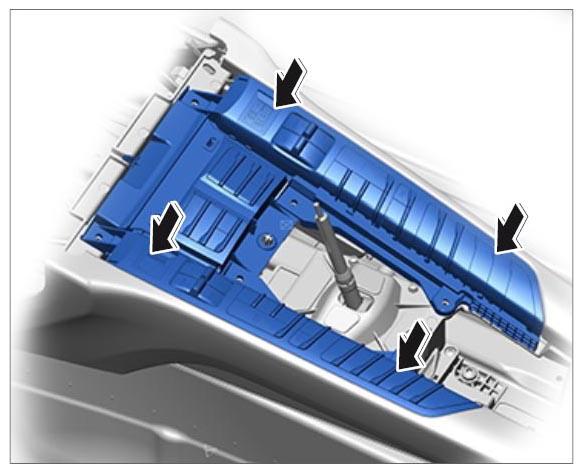

Insert and clip in switch console.

Fig 4: Clipping In Switch Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

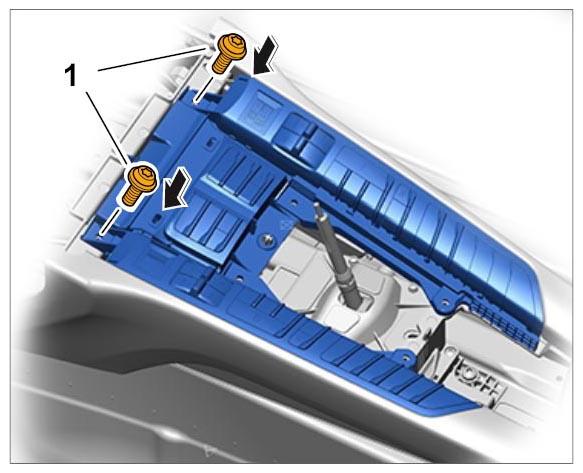

Screw in the two fastening screws -1- .

Fig 5: Securing Switch Console With Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
