Replacing Brake Discs (Information/Decision-Making Aid)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

When replacing brake discs as a result of wear (see Wear assessment) both brake discs must be replaced on an axle!

Irrespective of wear, a brake disc change can be necessary on the brake disc friction surfaces due to edge damage! In this case, only one brake disc can be replaced if the friction surface of the other PCCB brake disc is still 'as new' → Checking PCCB Brake Discs (Wear Assessment) .

The wear indicator plates (six on each brake disc) are arranged close to the outer diameter, offset by 120 ° -arrows- at three points. The three wear indicator plates on each friction surface (3 on the inside and 3 on the outside) are positioned directly opposite each other. Each wear indicator is approx. 2 cm² . The wear indicators are barely visible on new brake discs.

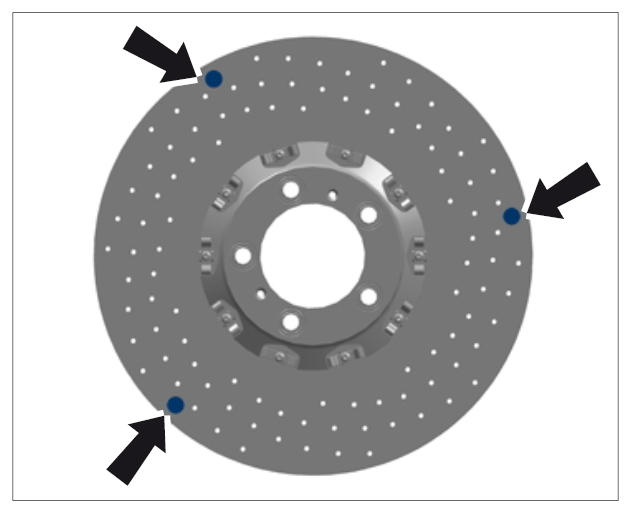

Fig 1: Locating Wear Indicators

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The minimum brake disc thickness (wear dimension) is stamped on the brake disc hub (example: Min. Th. 37.7 mm).
