Installing Side Trim Panel For Rear Luggage Compartment

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

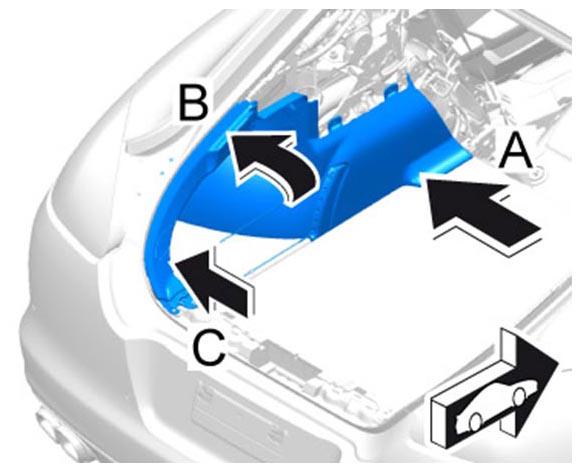

Place trim panel in installation position.
1. 1.1. Fit front trim panel -A- .
2. 1.2. Fit center trim panel -B- .
3. 1.3. Fit rear trim panel -C- .
Fig 1: Fitting Side Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

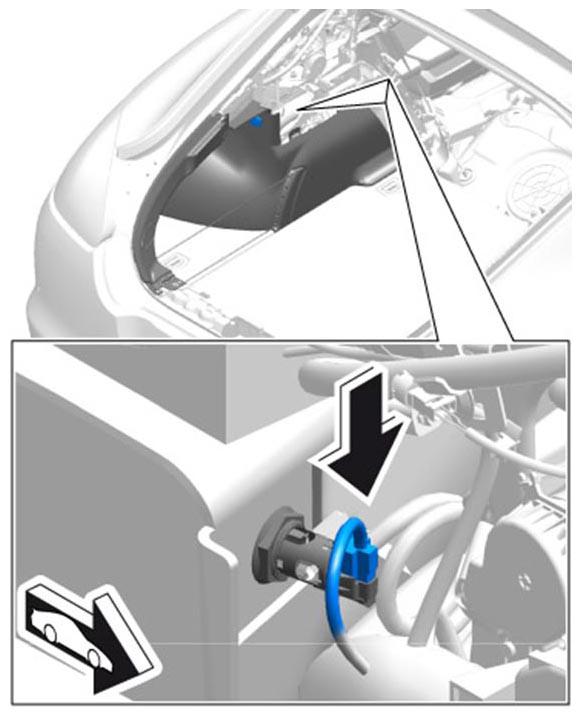

Connect plug connection for plug socket.

Fig 2: Connecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check that the plug connection is seated securely.

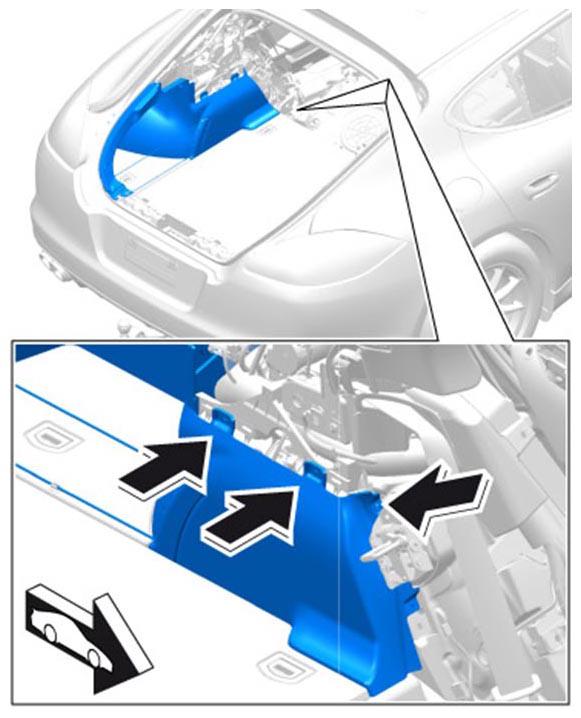

Clip in fixing clips.

Fig 3: Clipping In Side Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

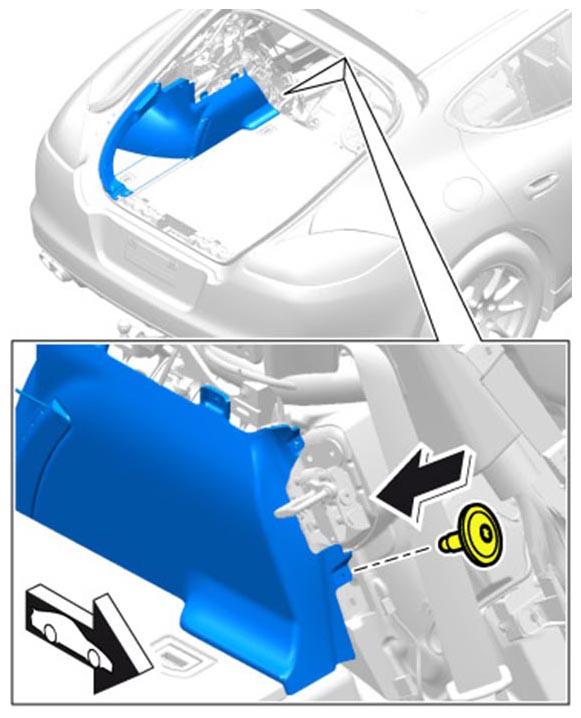

Tighten front fastening screw to the specified tightening torque Tightening torque 1.5 Nm (1 ftlb.) until secure.

Fig 4: Securing Side Trim Panel At Front
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

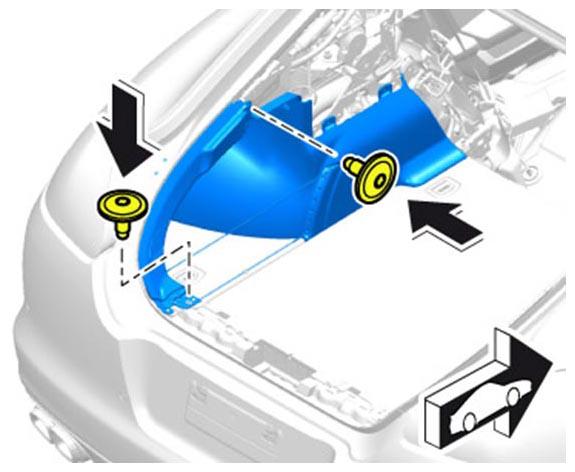

Tighten center and rear fastening screw to the specified tightening torque Tightening torque 1.5 Nm (1 ftlb.) until secure.

Fig 5: Securing Side Trim Panel At Rear/Centre
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

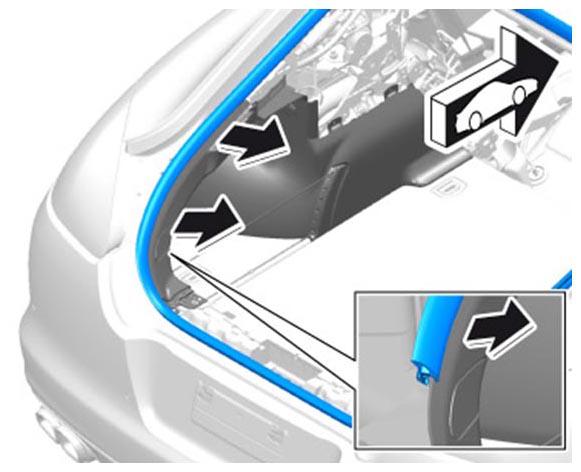

Pull rubber lip on rear lid seal out under the trim panel.

Fig 6: Removing Rubber Lip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
