Installing Cross Panel

  1. Installation is performed in reverse order to removal.
    1. 1.1. Position seal for cross panel.
    2. 1.2. Make sure that the cross panel -1-  engages in the guides -arrows-  during installation.

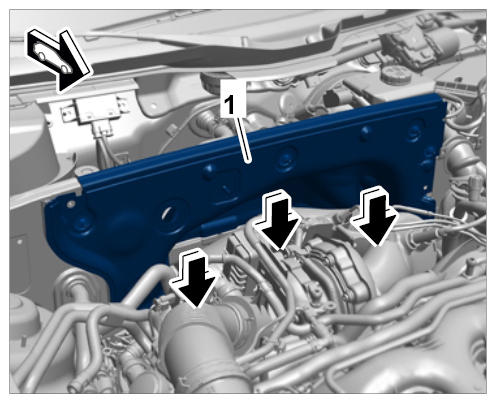

      Fig 1: Installing Cross Panel
      G10030547Courtesy of PORSCHE CARS NORTH AMERICA, INC.
