Preparing Front Side Member (Section) For Installation

  1. Remove studs -A-  from the left section of the longitudinal member -1-  and right section of the longitudinal member -2-  .
    1. 1.1. Prepare front side member (section) for welding.

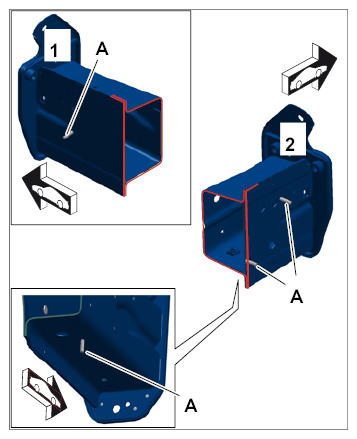

      Fig 1: Removing Studs From Left Section Of Longitudinal Member
      G10030539Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      Red Plug-welding/apply a full weld using inert gas without bonding
