Preparing Front Side Member For Installation

Drill holes for plug welding and blind rivet joints in the marked areas.
Information

Make sure that the bore holes A are flush with the connection areas of the reinforcement for the longitudinal member.
1. 1.1. Drill holes for plug welding in area -A- using a → Diameter: 8.0 mm drill bit.
2. 1.2. Drill holes for blind rivet joints in area -B- using a → Diameter: 6.5 mm drill bit .

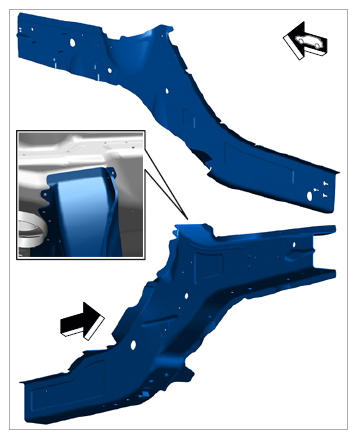

  Fig 1: Preparing Front Side Member
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 2: Removing Reinforcement
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information

  Make sure that the bore holes A are flush with the connection areas of the reinforcement for the longitudinal member.

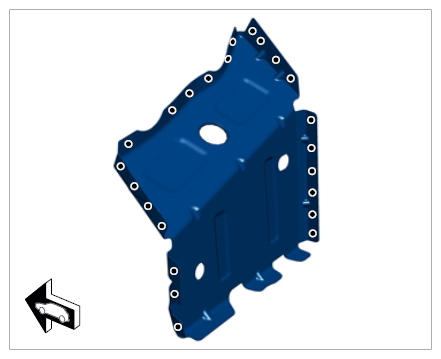

  Fig 3: Checking Bore Holes Of Reinforcement For Longitudinal Member
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information

  Make sure that the bore holes A are flush with the connection areas of the reinforcement for the longitudinal member.

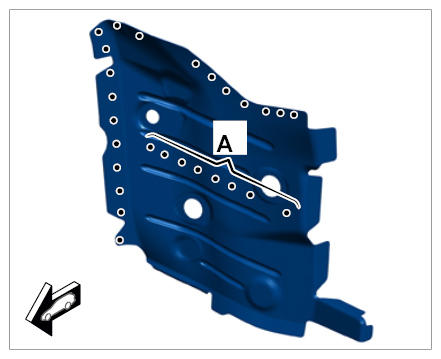

  Fig 4: Checking Front Wheel Arch Extension Bore Holes
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Prepare front side member, reinforcement and mounting for bonding, welding and blind riveting.

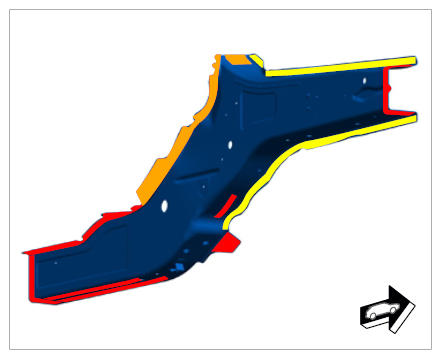

Fig 5: Preparing Front Side Member

G10030515

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

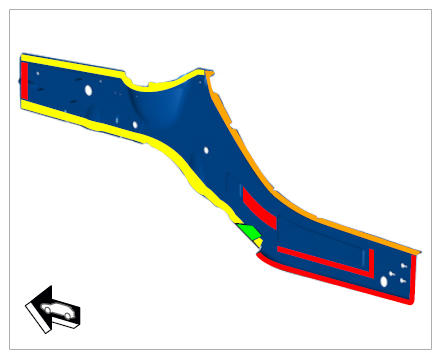

Fig 6: Preparing Front Side Member

G10030516

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 7: Preparing Reinforcement

G10030517

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 8: Preparing Mounting Front Side Member

G10030518

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

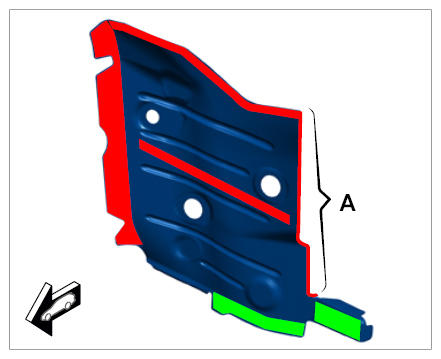

Fig 9: Preparing Front Wheel Arch Extension

G10030519

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

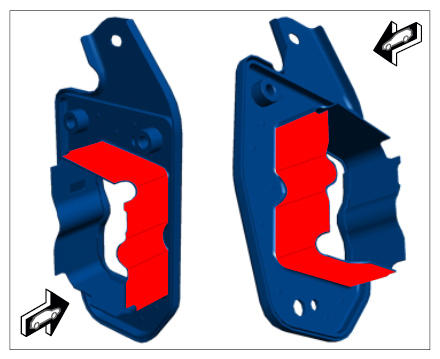

Fig 10: Preparing Front Impact Absorber

G10030520

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Red	Plug-welding/apply a full weld using inert gas without bonding
Yellow	Resistance spot-welding + bonding
Green	Resistance spot-welding
Orange	Blind riveting + bonding
