Preparing Connection Areas Of The Body For Installation
- Align the sealing surface and connections of the body.
- De-burr connection points and prepare them for welding.
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.

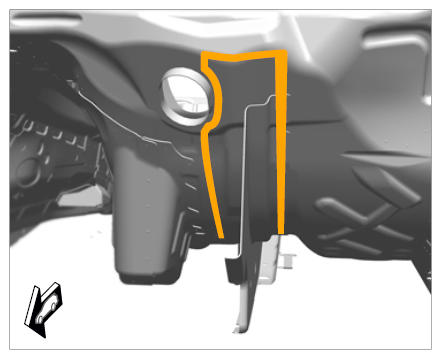

- Prepare marked areas for welding, bonding and blind riveting. → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

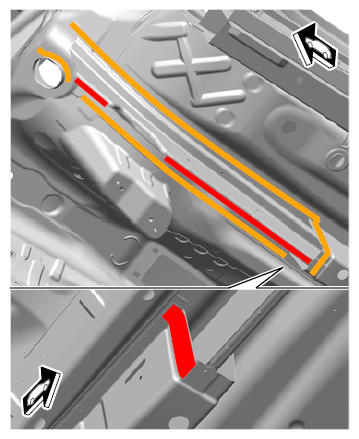

Red Plug-welding/apply a full weld using inert gas without bonding Orange Blind riveting + bonding
