Removing Headlight Mounting

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

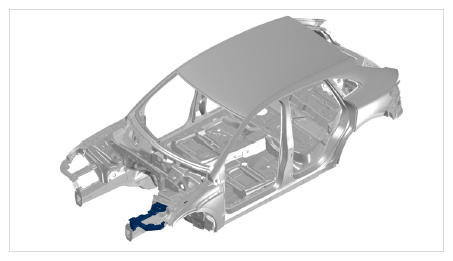

Fig 1: Headlight Mounting Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

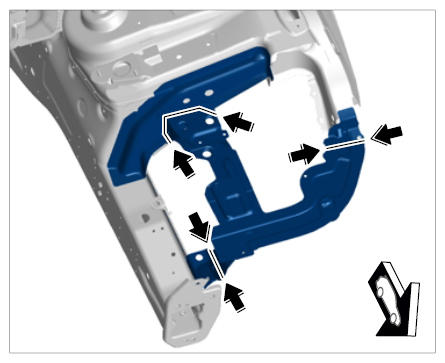

1. Roughly cut out headlight mounting -arrows-  .

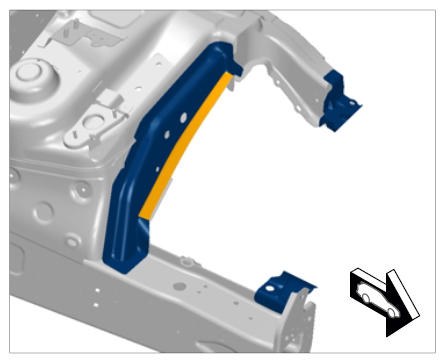

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Drill out the connection point on one side only. Do not damage the plate underneath.

2. Drill out spotwelds. Spotweld drill Nr.129 Pneumatic spotweld remover, Vario Drill WS 90 WE 1139

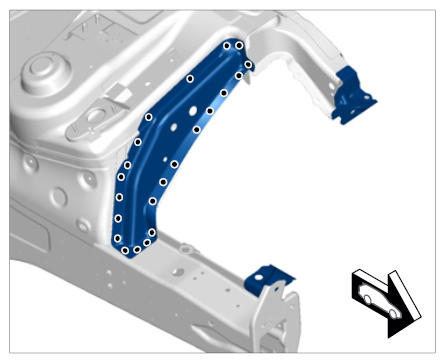

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3. Heat the marked bonding surfaces.
   1. 3.1. Remove support for ESP holder.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

4. Remove bracket for front side member.

   Information

   Drill out the connection point on one side only. Do not damage the plate underneath.

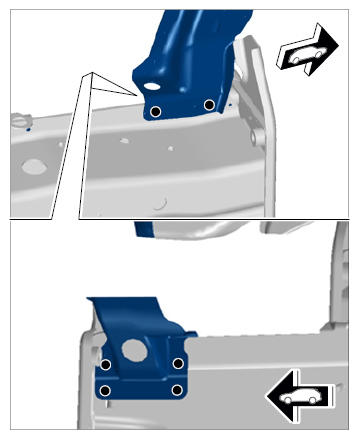

   1. 4.1. Drill out spotwelds. Spotweld drill Nr.129 Pneumatic spotweld remover, Vario Drill WS 90 WE 1139
   2. 4.2. Remove remaining pieces.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

5. Remove headlight mounting.

   Information

   Drill out the connection point on one side only. Do not damage the plate underneath.

   1. 5.1. Drill out spotwelds. Spotweld drill Nr.129 Pneumatic spotweld remover, Vario Drill WS 90 WE 1139

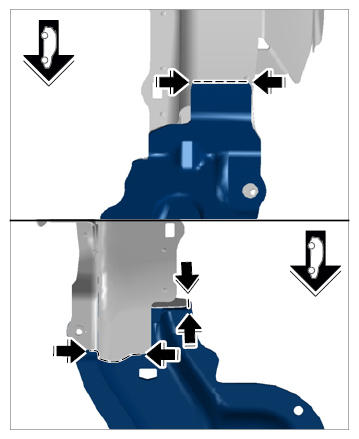

   2. 5.2. Remove welded seams -arrows-  .
   3. 5.3. Remove remaining pieces.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
