Installing Headlight Mounting

Install headlight mounting and fit it using a straightening set. Check gap dimensions → 5X00IN41 GAP DIMENSIONS .
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.

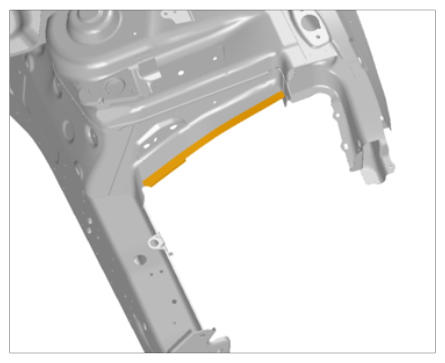

Apply adhesive to the area marked in yellow. → Application depth: 3.0 mm
Working with body structural adhesive → WM 5X00IN PROCESSING STRUCTURAL BODY ADHESIVE (ALL MODELS) .

Fig 1: Applying Adhesive
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Position the headlight mounting using a straightening set.

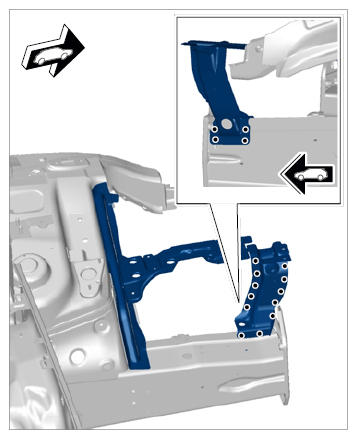

Resistance spot-weld ESP holder.

Fig 2: Installing ESP Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Position the headlight mounting using a straightening set.

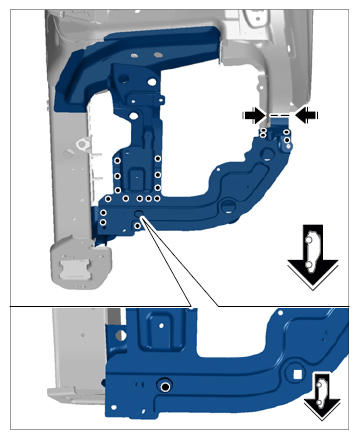

Resistance spot-weld the longitudinal member brackets.

Fig 3: Installing Longitudinal Member Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

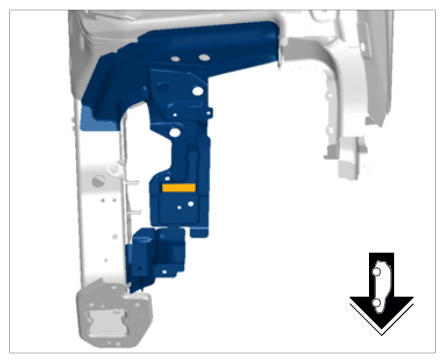

Apply adhesive to the area marked in yellow.

Fig 4: Applying Adhesive
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Position the headlight mounting using a straightening set.

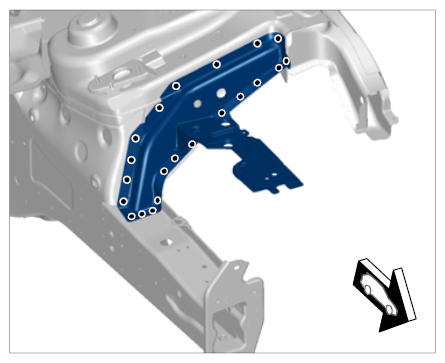

Resistance spot-weld the headlight mounting.
1. 6.1. Apply a full weld to area -arrows- using inert gas.

  Fig 5: Installing Headlight Mounting
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

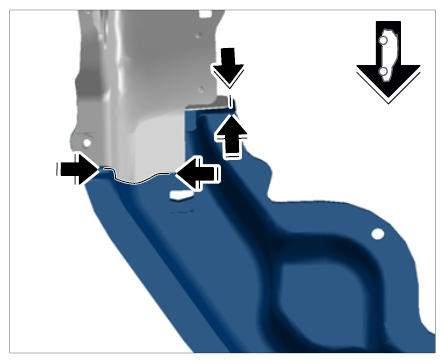

Apply a full weld to area -arrows- using inert gas.

Fig 6: Installing Headlight Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
