Removing Spring Strut Mount

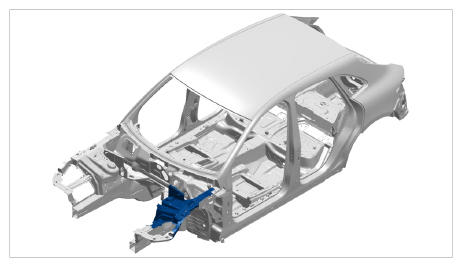

Fig 1: Spring Strut Mount Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

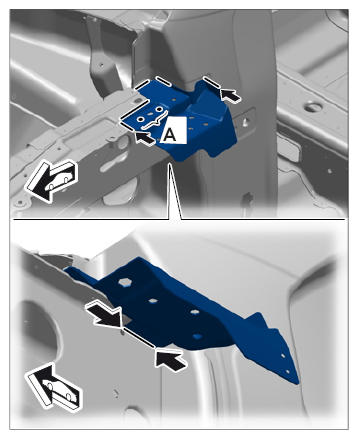

Remove wing bracket.
Information

Drill out the connection point on one side only. Do not damage the plate underneath.
1. 1.1. Drill out spotwelds -A- using spotweld drill .
2. 1.2. Grind down welded seams -arrows- .

  Fig 2: Removing Wing Bracket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

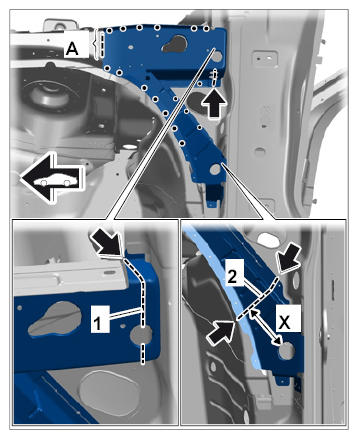

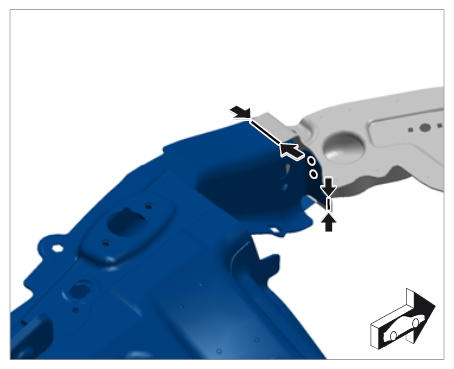

Remove reinforcements.
Information

Drill out the connection point on one side only. Do not damage the plate underneath.
1. 2.1. Drill out spotwelds using spotweld drill .
2. 2.2. Make a rough cut -1- .
3. 2.3. Mark and make cut -2- . → Distance: 80 mm
4. 2.4. Grind down welded seam -A- .

  Fig 3: Removing Reinforcements
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

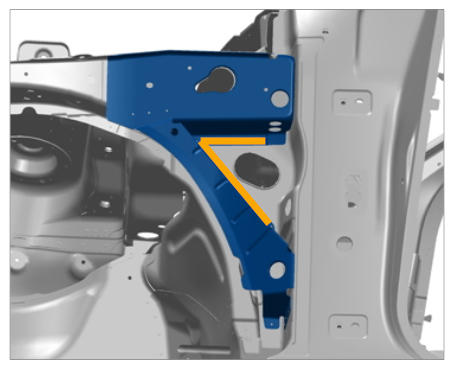

Heat bonding areas.
1. 3.1. Remove reinforcements.

  Fig 4: Identifying Reinforcements
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

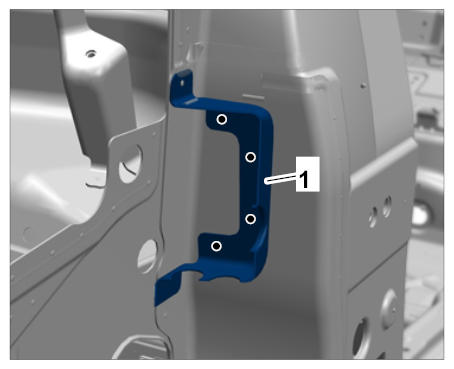

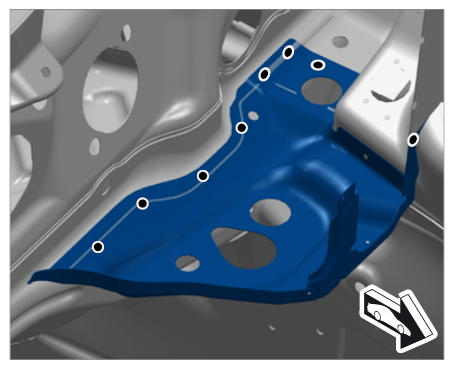

Remove remaining piece of upper reinforcement -1- .
Information

Drill out the connection point on one side only. Do not damage the plate underneath.
1. 4.1. Drill out spotwelds using spotweld drill .

  Fig 5: Identifying Remaining Piece Of Upper Reinforcement
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information

  Drill out the connection point on one side only. Do not damage the plate underneath.
Drill out spotwelds using spotweld drill .

Fig 6: Drilling Out Spotwelds Spring Strut Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

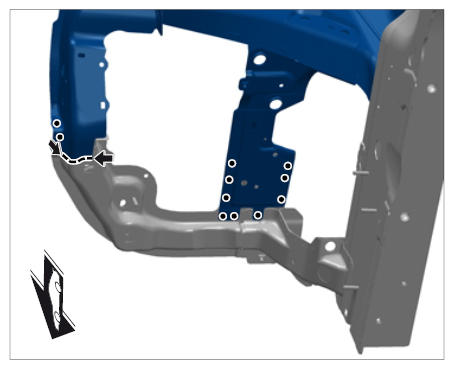

Information

Drill out the connection point on one side only. Do not damage the plate underneath.
Drill out spotwelds using spotweld drill .

Fig 7: Removing Spring Strut Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 6.1. Grind down welded seams -arrows- .

  Fig 8: Identifying Welded Seams
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

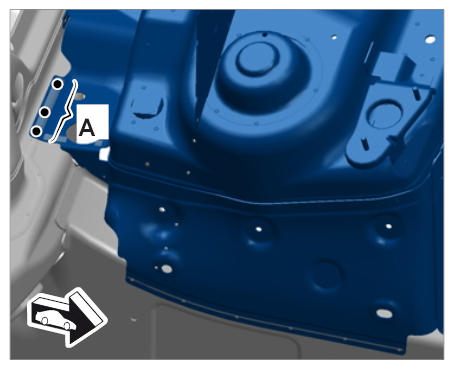

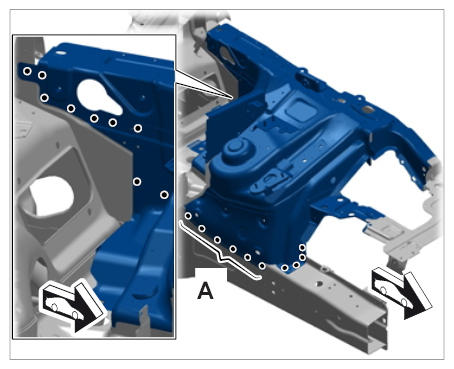

Drill out spotwelds -A- from the inside.

Fig 9: Drilling Out Spotwelds
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Drill out the connection point on one side only. Do not damage the plate underneath.
Drill out spotwelds on lower part of plenum panel using spotweld drill .

Fig 10: Drilling Out Spotwelds On Lower Part Of Plenum Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

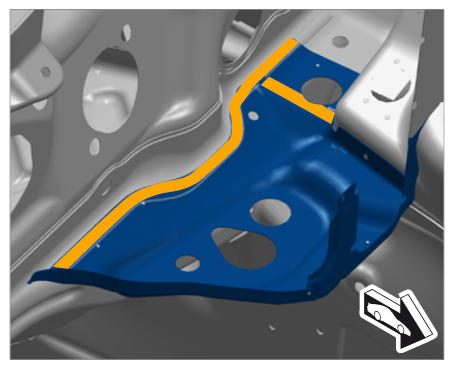

Heat bonding areas.
1. 9.1. Remove lower part of plenum panel.

  Fig 11: Removing Lower Part Of Plenum Panel
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information

  Drill out the connection point on one side only. Do not damage the plate underneath.

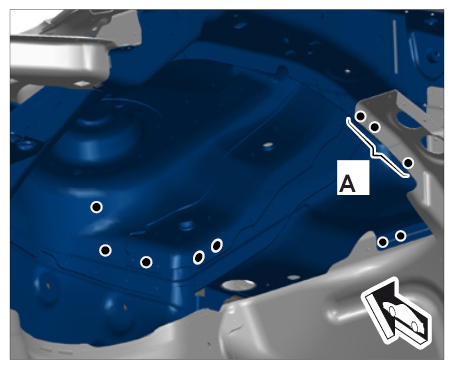

Drill out spotwelds -A- using spotweld drill .

Fig 12: Drilling Out Spotwelds
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

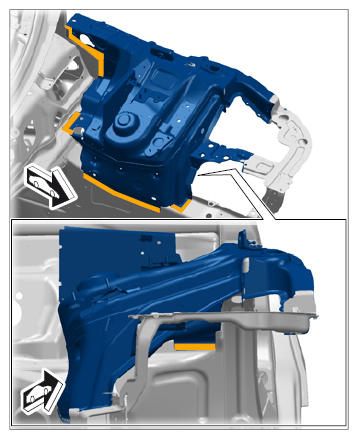

Heat bonding areas.
1. 11.1. Remove spring strut mount.

  Fig 13: Removing Spring Strut Mount
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
