Preparing Spring Strut Mount For Installation

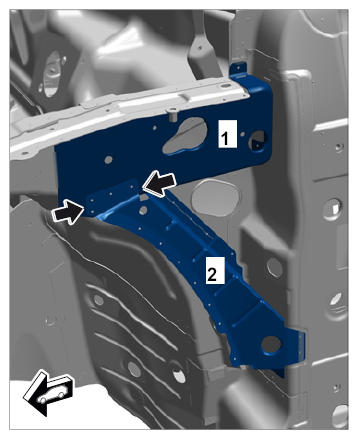

Cut reinforcement in area -arrows- leaving an overlap to the remaining piece of 30 mm.

Fig 1: Cutting Reinforcement Area Of Spring Strut Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit in and secure reinforcements.

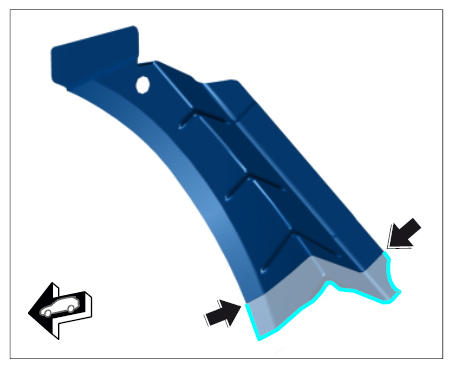

1. 2.1. Tack-weld upper part -1- and lower part -2- of reinforcement -arrows- .

  Fig 2: Fitting In And Secure Reinforcements
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove reinforcements.

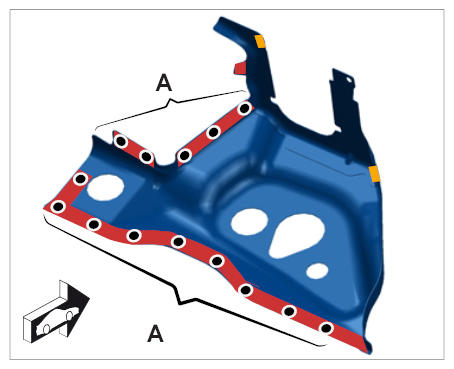

1. 3.1. Resistance spot-weld the marked area -A- .

  Fig 3: Removing Reinforcements
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

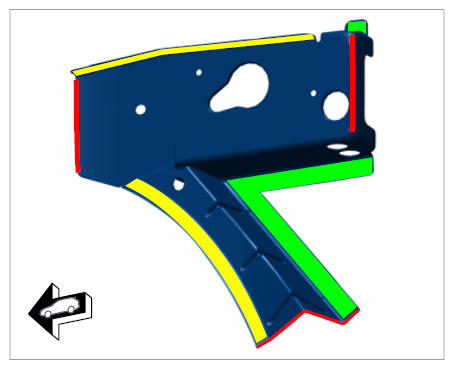

Prepare wing bracket for welding.

Fig 4: Removing Wing Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

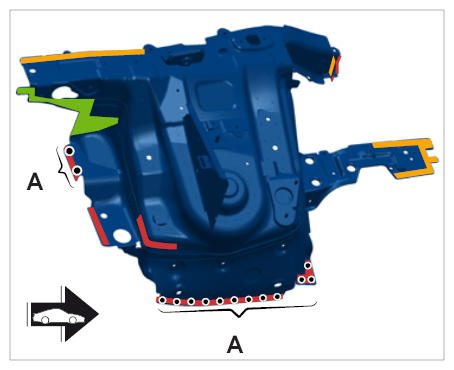

Prepare reinforcement for bonding and welding.

Fig 5: Removing Reinforcement For Bonding And Welding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

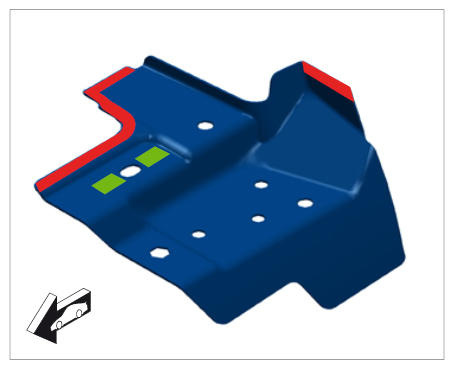

Drill holes for plug-welding in the marked areas -A- on the spring strut mount using a drill bit with a diameter of → Diameter: 8.0 mm.

Fig 6: Installing Spring Strut Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

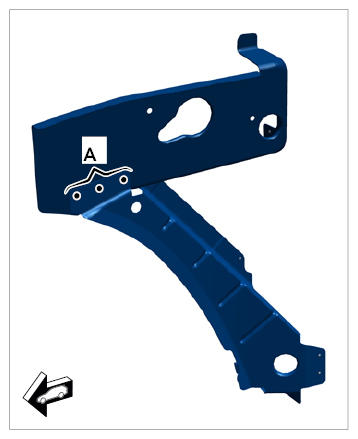

Drill holes for plug-welding in the marked areas -A- on the lower part of the plenum panel using a drill bit with a diameter of → Diameter: 8.0 mm .

Fig 7: Installing Lower Part Of Plenum Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Orange	Resistance spot-welding
Green	Resistance spot-welding + bonding
Red	Plug-welding/apply a full weld using inert gas without bonding
