Installing Spring Strut Mount

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Install spring strut mount and check that it fits perfectly. Check gap dimensions → 5X00IN DIAGRAM - BODY GAP DIMENSIONS .

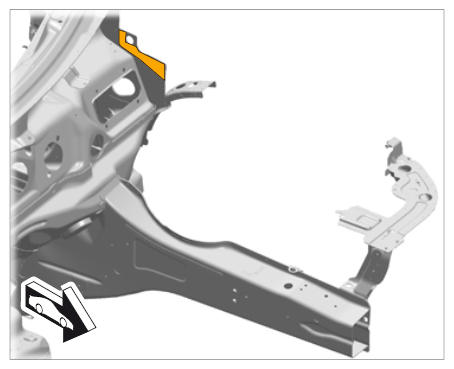

   1. 1.1. Apply adhesive to the areas marked in yellow → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE→ Application depth: 3.0 mm
      Fig 1: Applying Adhesive

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

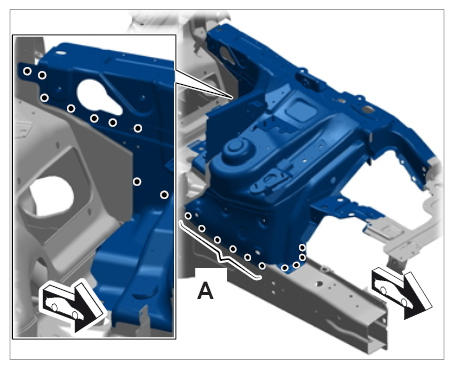

2. Resistance spot-weld the spring strut mount.
   1. 2.1. Plug-weld area -A-  using inert gas.
      Fig 2: Resistance Spot-Welding Spring Strut Mount

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

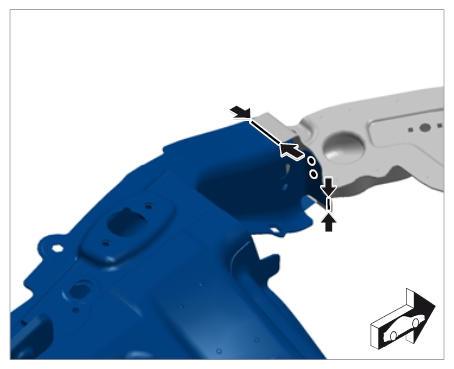

3. Apply a full weld to the area -arrows-  using inert gas.
   Fig 3: Full Welding Spring Strut Mount (1 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   Fig 4: Full Welding Spring Strut Mount (1 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

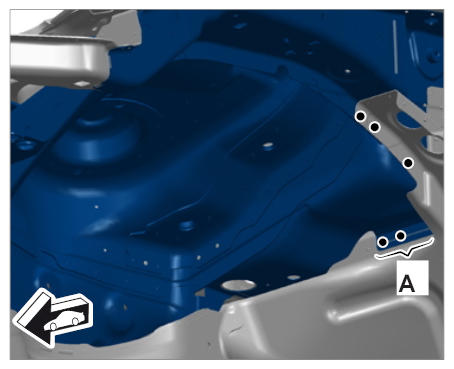

4. Plug-weld area -A-  using inert gas.
   Fig 5: Plug-Welding Spring Strut Mount

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

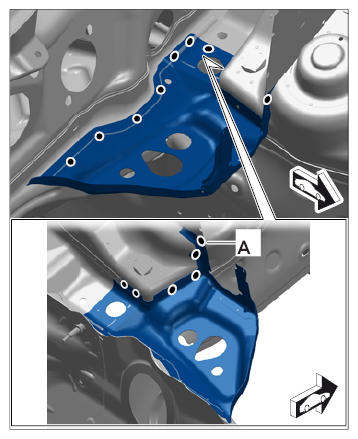

5. Install lower part of plenum panel.
   1. 5.1. Plug-weld the lower part of the plenum panel using inert gas.
   2. 5.2. Resistance spot-weld area -A-  .
      Fig 6: Installing Lower Part Of Plenum Panel

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Install reinforcements.

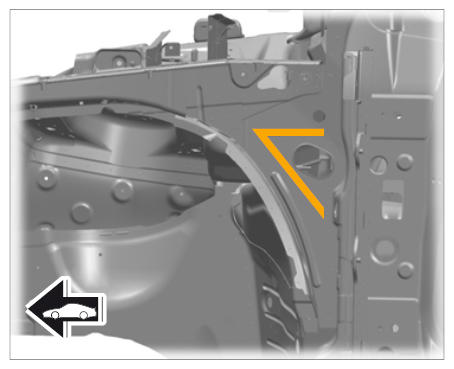

   1. 6.1. Apply adhesive to the area marked in yellow.
      Fig 7: Applying Adhesive

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

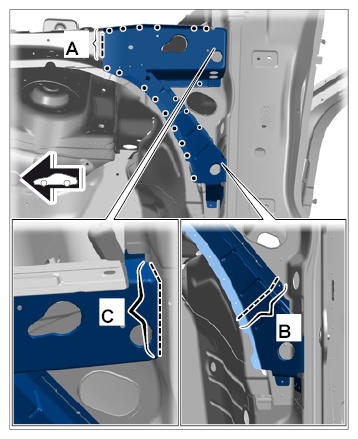

7. Resistance spot-weld the reinforcement.
   1. 7.1. Apply a full weld to area -A & B-  using inert gas.
   2. 7.2. Spot-weld area -C-  using inert gas.
      Fig 8: Installing Reinforcements

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

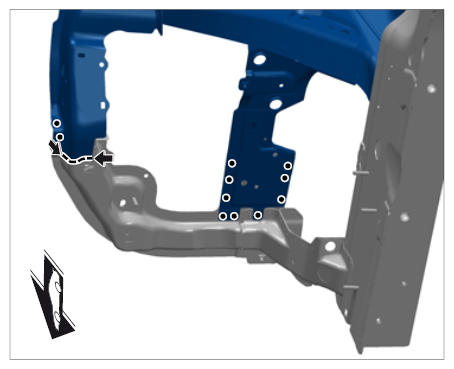

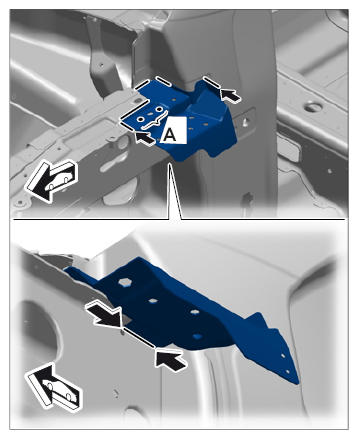

8. Install wing bracket.
   1. 8.1. Resistance spot-weld the wing bracket in area -A-  .
   2. 8.2. Apply a full weld to areas -arrows-  using inert gas.
      Fig 9: Installing Wing Bracket

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
