Loosening Lock Carrier
Information
- The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
- The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
- Some steps must be carried out automatically.
- Some of the repair illustrations show only one side of the vehicle.
- Disconnect battery ground strap.
- Remove engine cover.

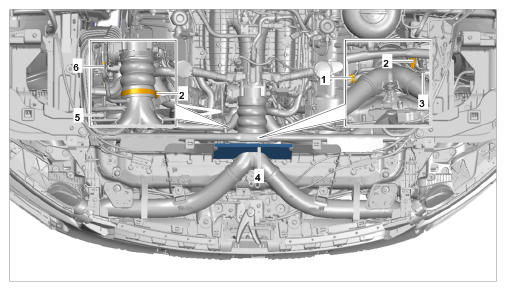

- Remove rubber seal -4- on feed-through element for pressure pipe.
- Loosen screw-type clamp -2- used to secure the throttle-housing cover to the pressure pipe and pull cover off pressure pipe. → .
- Loosen clamp -1- and disconnect hose from pressure pipe.
- Loosen clamp and disconnect hose -6- from pressure line.
- Disconnect hose -5- from vacuum line for the ambient air valves.
- Release and disconnect electric plug connection -3- on the pressure sensor.

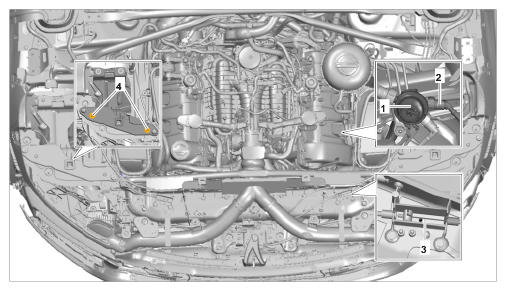

- Release and disconnect coolant vent line -2- on the bleeder valve -1- .
- Unclip and disconnect operating cable -3- for bonnet release from the bracket.
- Unscrew front fastening screws -4- on the right headlight mounting. .

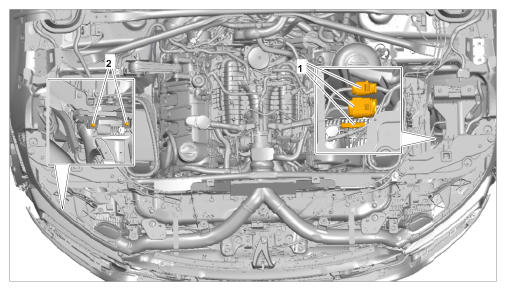

- Release and disconnect electric plug connections -1- for front wire harness and unclip wire harness at the body. .
- Unscrew side fastening screws -2- on the front retaining strips.
- Apply markings -6- to ensure correct installation position of lock carrier with respect to the body -1- during re-installation.
- Remove upper transverse strut -5-
for lock carrier on the body -1-
.
- 15.1. Unscrew top fastening screws -3- .
- 15.2. Unscrew fastening screws -2- at the sides.
- Unscrew top fastening screws -4-
on both sides.
Marking, threaded joint on transverse strut

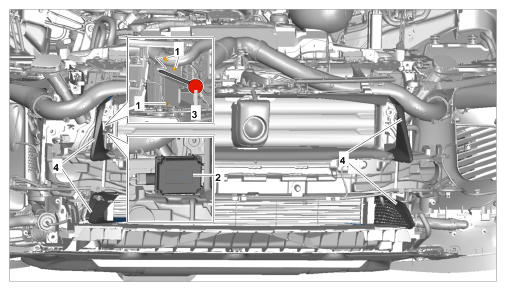

- Swivel side parts -4- of the air guides at the top and bottom inwards.
- Remove control unit for garage door opener.
- Unscrew fastening screw securing holder for control unit for garage door opener to lock support and remove holder.
- Unscrew outer top fastening screw -1- for the bracket at the threaded bore.
- Screw guiding rods -3- into the threaded bore. Tools used: Guiding rods T10093
- Unscrew the other fastening screws -1- securing the bracket to the body.

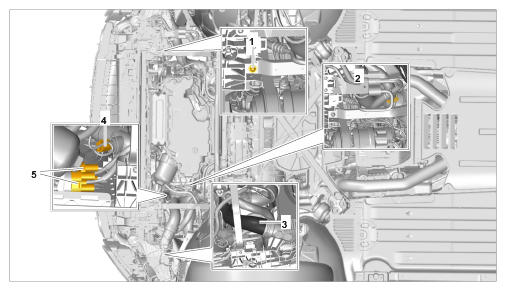

- Unscrew fastening screws -1- on supports at the lock carrier.
- Disconnect charge air hose -3- at the charge-air cooler.
- Disconnect hose from the recirculating air valve -2- on the intake manifold.
- Release electric plug connection -4- at the coolant temperature sensor and disconnect it.

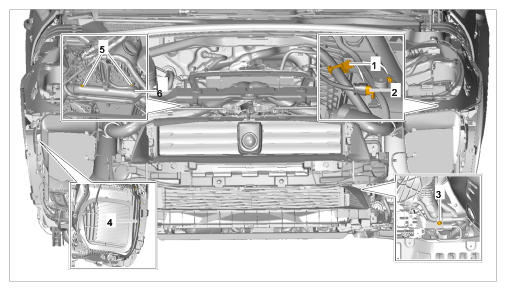

- Release and disconnect electric plug connections for the electric fans -5- and unclip the relevant wire harness at the lock carrier.
- Unclip wire harness -4- at the lock carrier.
- Unscrew fastening screw -3- on the bracket for refrigerant lines.
- Release and disconnect electric plug connections -2- for airbag sensors.
- Unclip hose for headlight cleaning system -1- at the lock carrier.
- Unscrew fastening screws -5- for coolant line -6- on the timing-case cover.
- Pull the lock carrier forward.
- 33.1. Pull lock carrier on transverse strut forward. When moving the lock carrier, make sure that the hoses and lines are not overstrained. Disconnect them beforehand if necessary.
- 33.2. The maximum distance between the lock carrier and front bracket must not exceed 80 mm on both sides. Otherwise, the hydraulic and refrigerant lines will be overstrained.
