Installing Cylinder Head Cover For Cylinders 1-4

Information

The tightening specifications for the basic engine are stored centrally. Refer to 1X001N Technical values in the appropriate service information.

> Refer to 2X001N Technical values in the appropriate service information.

or

> 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES AND ASSEMBLY OVERVIEWS

Tightening torques and assembly instructions for other assemblies (e.g. chassis, electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.

1. Replace seals for cylinder head cover. For details, see

   WM, 158055 REPLACING SEAL FOR CYLINDER HEAD COVER

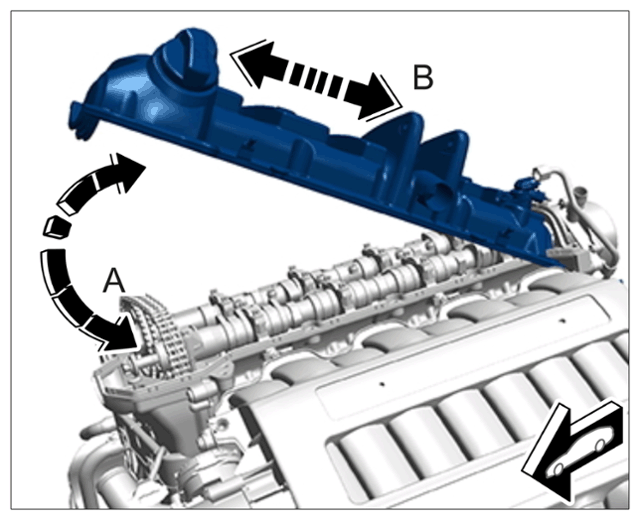

2. Guide cylinder head cover up and in at a slant -B-  and lower it towards the front -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing cylinder head cover for cylinders 1-4

3. Centre the cylinder head cover over the inserted bar ignition modules.
4. Fit fastening screws on the cylinder head cover in the specified sequence -1 to 13-  .

   > 9824 - Flexible-head socket wrench  , a/f 8

   > 9824/1 - Flexible-head socket wrench  , a/f 10

   > 9824/2 - Torx Micro Bit T30

   > 9824/3 - Torx Micro Bit T45

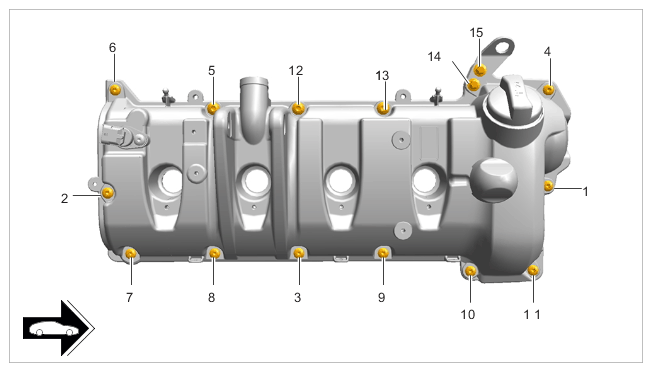

   Fig 1: Cylinder Head Cover Fastening Screws Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws on cylinder head cover for cylinders 1 - 4

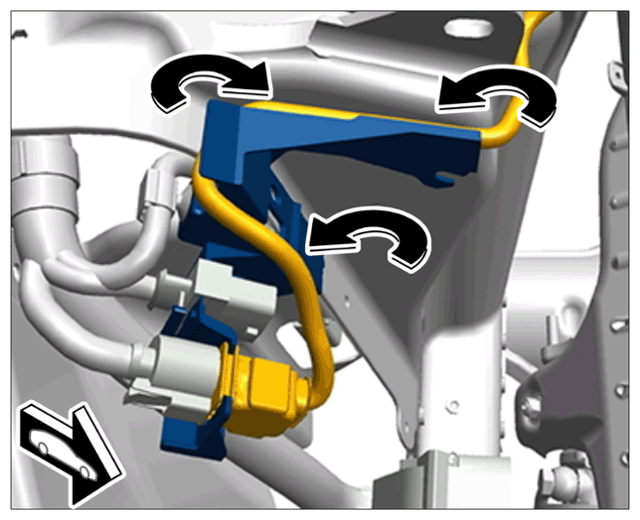

5. Insert the cable for the primary catalytic converter into the guide provided for it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cable guide for primary catalytic converter line

6. Plug in connector for valve lift adjustment.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Connector for valve lift adjustment

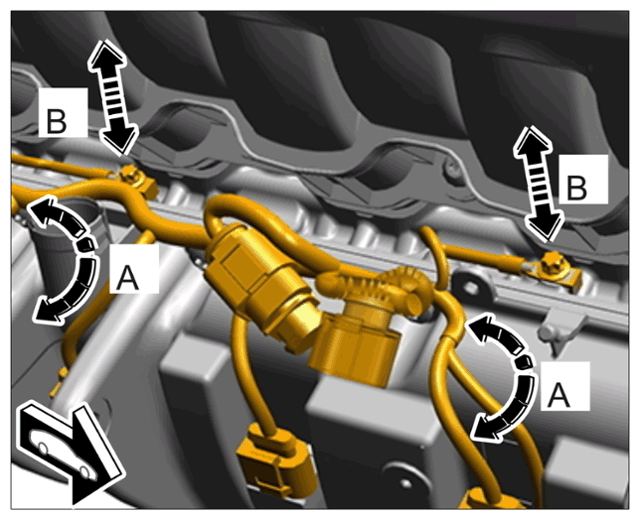

7. Fit ground straps -B-  and guide wiring harness for bar ignition modules into the bracket -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wiring harness for bar ignition modules

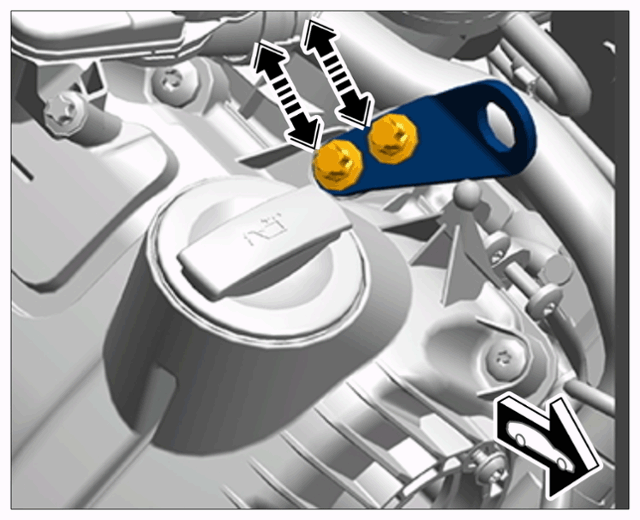

8. Fit fastening screws for engine retaining eyelet.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Engine retaining eyelet, cylinders 1-4

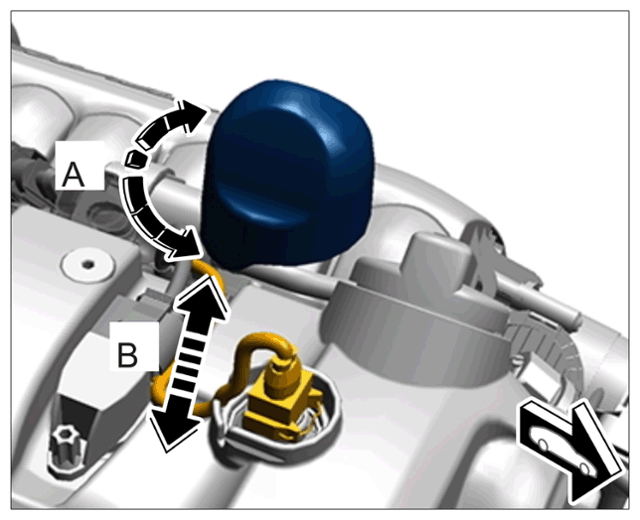

9. Plug in connector for solenoid valve for camshaft control -B-  and fit the cover -B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Solenoid valve for camshaft

10. Fit positive crankcase ventilation hose.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Positive crankcase ventilation hose

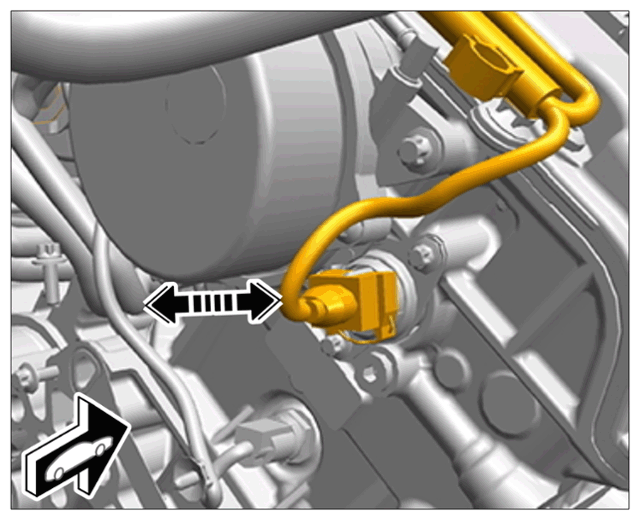

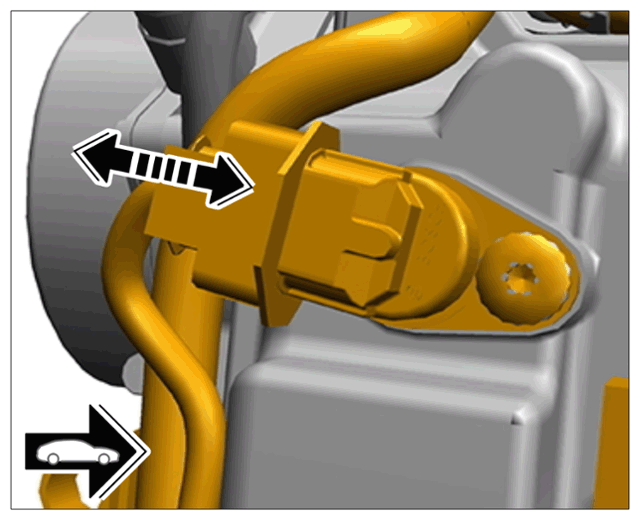

11. Plug in connector for camshaft hall sender.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Camshaft hall sender connector
