Removing Camshaft Timing Gear

NOTIFICATION

Incorrect handling of crankshafts

• Risk of damage to the timing system
  1. → Never turn the crankshaft against the rolling direction or when the chain tensioner is removed.
  2. → Proceed carefully with your work.
  3. → Only turn the engine at the crankshaft.
  4. → Observe general warning notes and working regulations.

NOTIFICATION

Small parts falling into the timing case

• Risk of engine damage
  1. → Do not let the diamond washer and other small parts fall into the timing case.

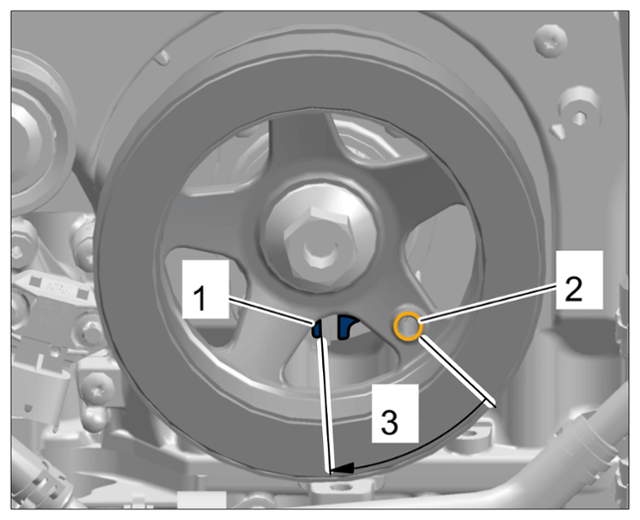

1. Turn the crankshaft at the vibration balancer so that the vibration balancer's staking bore -3-  is located approx. 45° degrees in front of the lower staking point on the timing-case cover 1  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Staking bore 45 degrees before TDC of cylinder 1

2. Remove chain tensioner.

   > 153619 REMOVING AND INSTALLING CHAIN TENSIONER

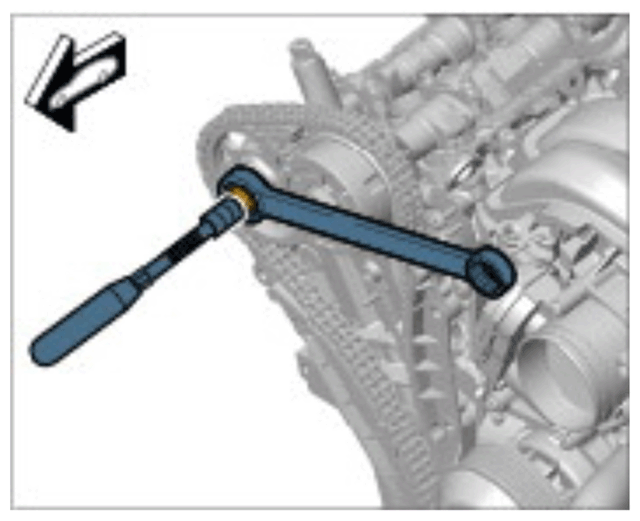

3. Loosen all four screws on the camshafts (sprockets and camshaft controllers) by one to two turns. Counter at the respective hexagon.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening camshafts (shown with timing-case cover removed)

   Information

   • Move the camshafts carefully. Do not force.
   • Turn in the other direction if necessary.

   Information

   • A data matrix code is shown on the staking dihedron of the camshafts.
   • This is a square black/white dotted marking used for identification purposes during the production process.
   • This marking can be used as an aid when inserting the camshafts into the cylinder head. All four camshafts exert the least amount of pressure on the valves when the data matrix code is facing upwards during installation.
4. Turn all four camshafts so that all data matrix codings on the adjustment edges are pointing upwards almost simultaneously (this enables the camshafts to exert the minimum amount of pressure on the valve lifters).

   The camshafts are turned at their hexagon using an appropriate open-ended wrench. Refer to identical information on installing camshafts.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

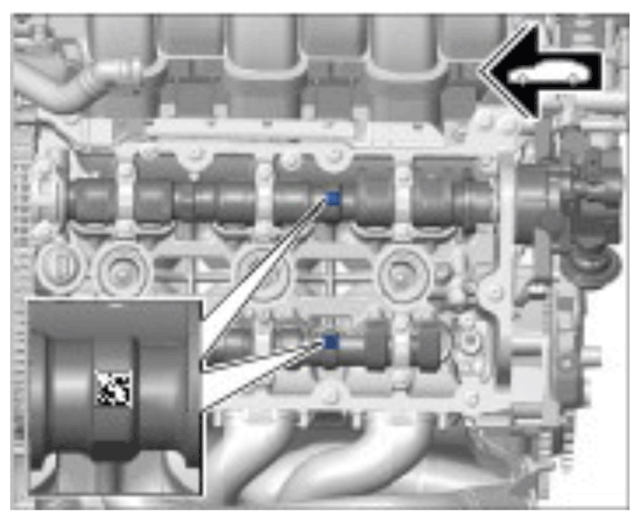

   Camshaft position for cylinders 1 to 4

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

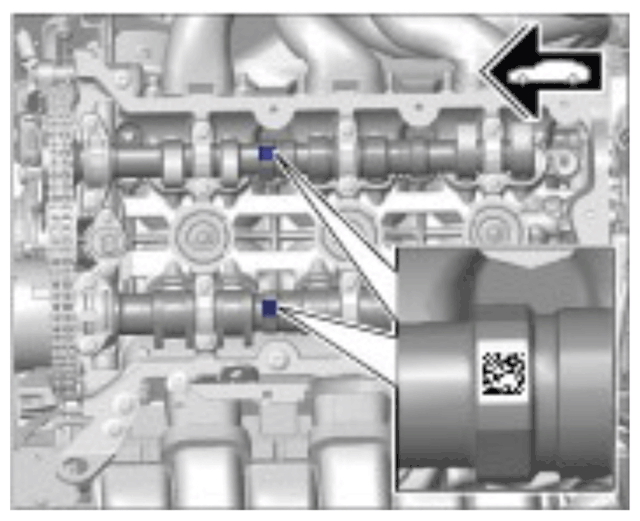

   Camshaft position for cylinders 5 to 8

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

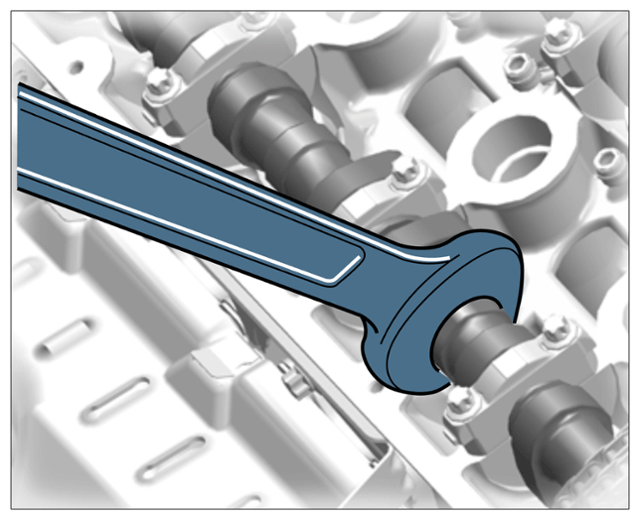

   Hexagon at camshaft

5. Loosen timing chain.
6. Remove screw for the respective camshaft timing gear -3-  and carefully take out camshaft timing gear -3-  under the timing chain using both hands. Carefully loosen camshaft timing gear from behind using a rubber hammer if necessary.

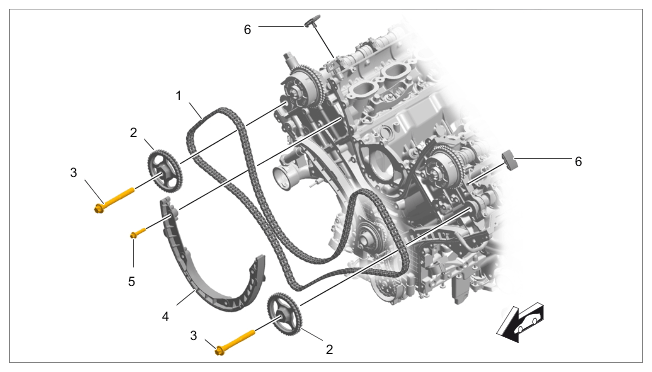

   Fig 1: Timing Chain And Sprockets Components Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Timing chain and sprockets

   1	Double-chain camshaft drive
   2	Camshaft sprocket
   3	Screw, M12 Tighten fully after setting valve timing.
   4	Deflector rail
   5	Screw, M8 x 35
   6	Camshaft-to-camshaft guide pad
   A	Direction of travel
