Special Tools

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

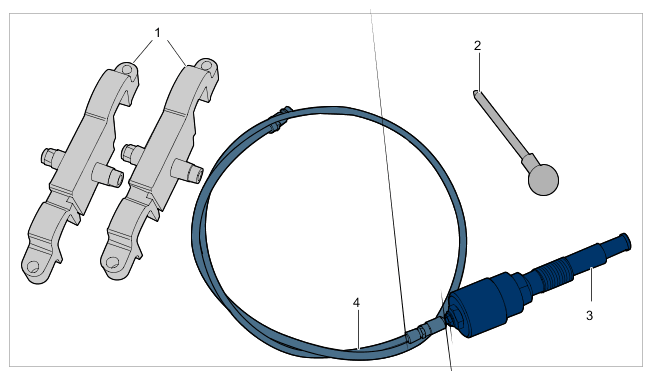

Adjusting tool for setting timing

Both staking tools for the camshafts are required in pairs for adjusting the cam shafts. 9678/1 - Staking tool . The tools must be used in mirror image for both cylinder heads.
The staking pin 9595/1 - locating pins is used for the staking bore between the vibration balancer and timing-case cover for setting the TDC.
The assembly chain tensioner 9683/1 - auxiliary chain tensioner is required in the V8 engine for setting the timing precisely because of the tolerances of the long timing chain. It is not suitable for the 4.5-litre engine. Lubricate the connection with a few drops of commercially available pneumatic oil (to prevent the inner piston from seizing). Operating pressure: 5.0 to 5.5 bar.
Compressed air hose on the 9683/1 - auxiliary chain tensioner
